LBW-2500PB Vertical Automatic Insulating Glass outside assembly flat press Production Line
This line can be upgrated and design according to customer's demands.

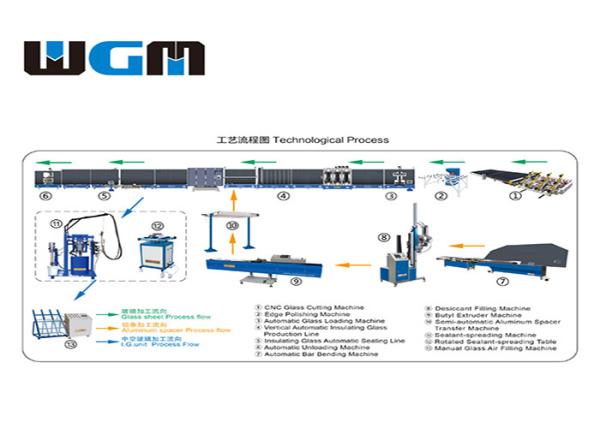

Usage:
LBW2500PBVertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.It has seven parts:
1 input section
2 washing section
3 inspecting section
4 spacer location section
5 outside assembly section
6 press section
7 output section or tilting table
Features:
1)This line is controlled by PLC and realizes the automatic control and frequency control of the motor speed of the whole line. It adopts advanced assembly technique and solves the problems of uneven press and misplacement of the glass. The assembly section adopts limit switch and cylinder tank whose travel distance can be adjusted, making the operation easy and the location precise and the movement reliable.
2)There are two operation methods in the control panel: ‘automatic’ and ‘manual’. If the separate operation of each section or maintenance is needed, the ‘manual’ operation method is needed.

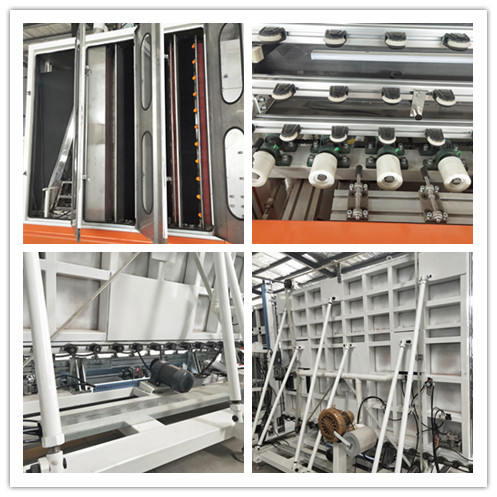

3) Washing section :6 pieces of soft brushes wash low-e glass
water heating device make sure glass clearness in cold weather
18.5KW high pressure low noise blower making circulate hot air ensure the glass in dry condition
4) Press section: can open 450mm for maintenance
Choose Screw ball and Synchronous belt to drive
Technique parameter:
| Power Supply | 380V 50 HZ 35KW |
| Dimension (L x W x H) | 18390mmX2500mmX2950mm |
| Production quantity | 700-800IG units/8hs |
| Max glass size | 2200mmx3000mm |
| Min glass size | 300mmx400mm |
| Washing glass thickness | 3-15mm |
| Washing glass speed | 0-10m/min |
| Insulating glass thickness | 48mm(can adjust) |
| Transmission glass speed | 45m/min |
| Compress air | 0.8m³/min |
| Air pressure | 0.8Mpa |
Main components:
| NO. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10.0 inch touch screen | KINCO | TAIWAN |
| 3 | Photoelectric switch | AUTONICS | KOREA |
| 4 | Limit switch | AUTONICS | KOREA |
| 5 | Transducer | SCHNEIDER | FRANCE |
| 6 | Vacuum generator&sucker | SMC | JAPAN |
| 7 | Low voltage electric components | AIRTAC | TAIWAN |
| 8 | Solenoid valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Liner guide rail | HIWIN | TAIWAN |
| 11 | Bearing of cleaning section | SKF | SWEDEN |
| 12 | AC digital servo motor | TECO | TAIWAN |
| 13 | Transmission motor | CPG | ZHEJIANG |
| 14 | Hydraulic Parts | HUA DE | BEIJING |
| 15 | Gas-type Filling | AIRTAC | TAIWAN |
| 16 | Oil pump | JILI | TAIWAN |
| 17 | Servo motor | SIEMENS | GERMANY |

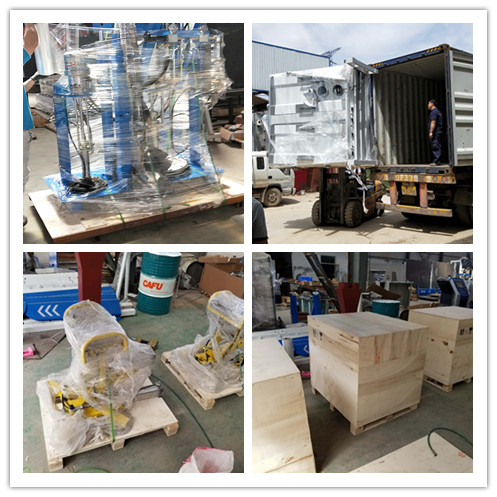

Packing & Delivery:
1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container
machine specific details
plwood pallet and woode case packing
Customer from all over the world
