2000mm Height Low E Glass Processing Machinery CE Approval Automatic Insulating Glass Argon Gas Filling Machine

Usage: LBW2000PC Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Multifunction Production Line is a high-efficiency insulating glass processing equipment. This line can achieve the Europe gas filling standard and satisfy all aspects of customers’ demands with advanced technology, high production efficiency and complete functions. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.

Feature:

Secotion1: Feed Section:

It is the first section of the line and its main function is to transmit the glass to the washing and drying section. The transmission is carried out by chains driven by the motor and the transmission speed is stable. It runs at the same speed of the washing and drying section and the speed can be changed by the inverter. It can avoid the back board bending and deformation, also can waterproof, avoid acid-base.

LOW-E glass automatic diagnosis system: it can easily know whether low-E glass putting is right or not.

Section2:Washing and Drying Section:

Washing part:This part has three pairs of brushes (the material is high -temperature nylon wire ) and a pair of sponge roller. The brushes are driven by three synchronous motors separately and the movement is stable. Three pairs of tubular rollers type of hair brushes, use High Temperature Resistant and soft nature hair brush, fully guaranteed the coating glass especially the LOW-E glass layer stratification can’t be destroyed.

Drying part: the air enters into the air knife from the top. The distance between the air knife and the glass should be adjusted according to the thickness of the glass in order to guarantee the drying effect. Air passage adopts the most advanced design and increase the drying speed and productivity.

Section3: Transition and Storage Section:

This section is used to transmit and store the glass to improve the work efficiency

Section4. light inspection section and spacer bar location section

This section is used to inspect the washing and drying quality of the glass. The lights are put perpendicularly with the glass and the back board is painted black. It is easy to check the washing and drying effect. When the back end of the glass passes the photoelectric switch, the transmission speed will increase automatically.

Section5.Outside Assembly Section

1. Adopt a line of optoelectronic switches for check the height of glass. It can calculate the need of gas volume, then it will automatic adjust the gas filling time.

2. These two wheels are controlled by Airtac cylinder, and they can easily push the glass tightly together.

3. The sensor can easily know the glass position and stop at right place when glass coming from the light and aluminum bar installation section.

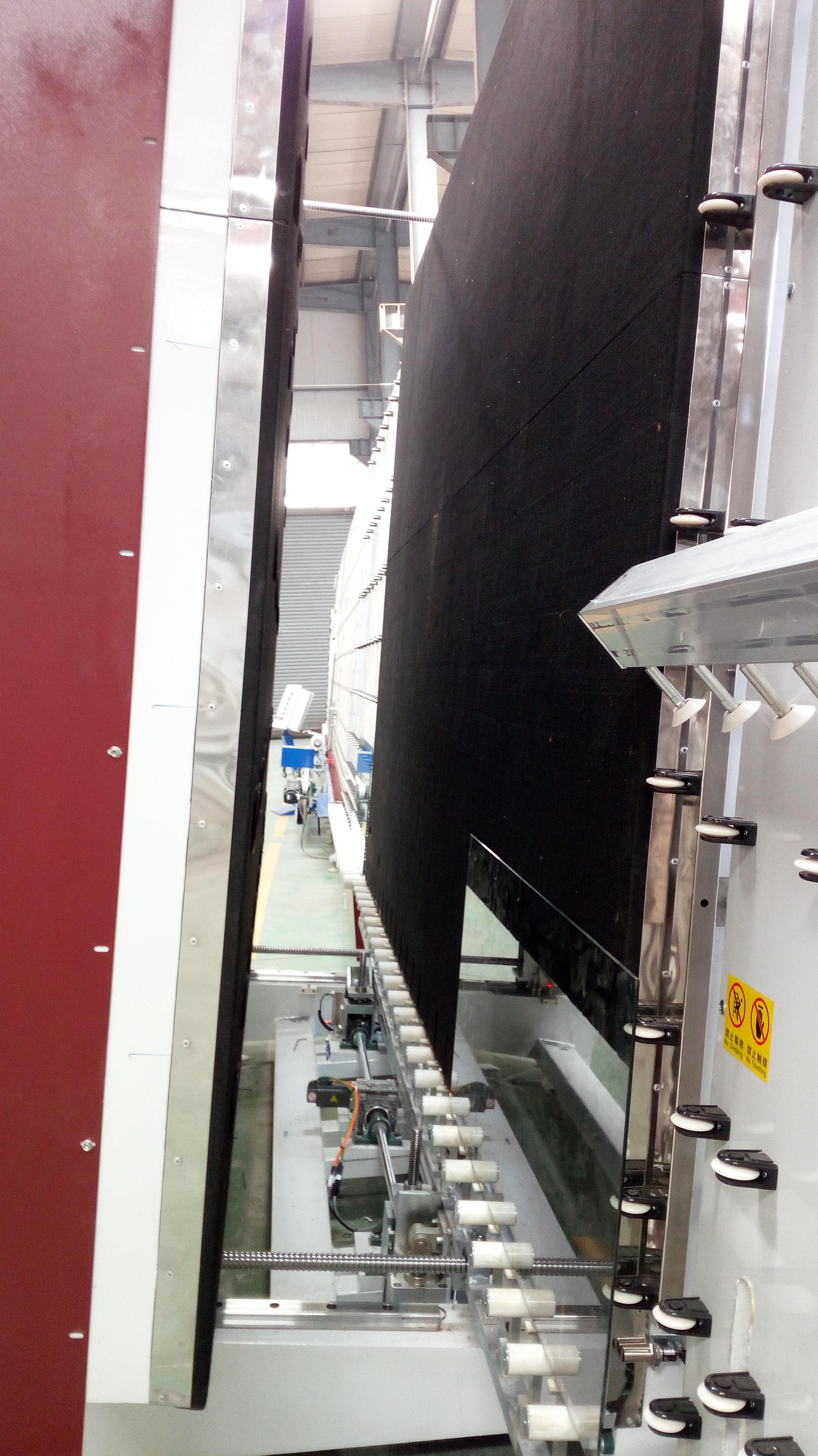

Section 6.Inside Flat Press Section

When fill gas inside, it need to assemble inside. So this part has suckers. The gas filling holes are in the bottom, it divided into several groups. How many gas filling part working depend on the glass width.

Section7. Transition and Storage Section:

11) This section is used to transmit and store the glass to improve the work efficiency
