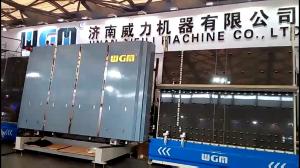

2000mm High speed and new design Insulating Glass Production Line to make the good quality insulating glass
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black color
Insulating Glass Machine Feature:
Features and functions:
1. The machine have feed section, washing and drying section, light inspection section, transition section, Aluminum spacer location section, Servo driving plate press section, storage section, tilt unloading section. (8 sections)
2. The machine adopt the advanced servo motor, gear and rack press technology, through digital PLC control system, main components are world famous brand. The whole machine features powerful function and reliable.
3. The production line can produce triple glazing, double glazing, curtain wall glass, over long glass unit and stepped glass
4. Automatic LOW-E coating glass identifying
5. The machine has automatic and the manual two operating modes. They are more convenient and succinct;

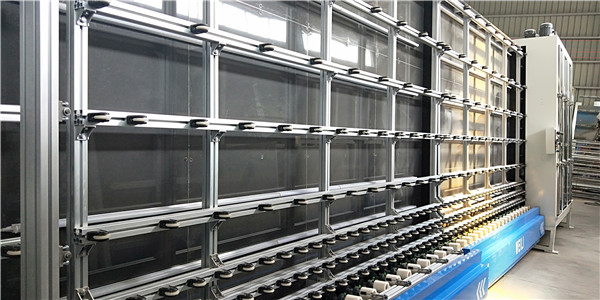

Washing and dry section:
1 The material of the back plate is stainless steel. It made by CNC laser cutting and CNC bending.
2 There is a pair of declining six diamond air knife, the air knife adopts the stainless steel material and CNC bending. The front air knife can adjust backward or forward according the glass thickness.
3. The blower, which is equipped with heater, blows strong hot wind; Also it is equipped with infrared heater that can dry the both sides of the glass quickly. The production line adopts the Internal circulation wind.
4. Cleaning dryer and the water tank was made by stainless steel processing manufacture, transmits the roller for to bear the acid and alkali rubber roller, according to the glass thickness transmission roller spacing may the automatic control.
Press section:
1 The press panel board of panel pressure board adopts to imported Osculum, the location system are controlled by the Servo motor, gear and rack press technology system, which guarantee the two pieces glass press together safely and steadily and the processing accuracy.
2. This machine includes One lifting table, when you assemble a very big spacer bar on the glass, it's easier to use this lift to put it on to glass.
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black colo
Insulating Glass Machine Technical Paramater:
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black color
|
Technical Parameter | LBW2000PD Vertical insulating glass automatic inside & outside assembly production line |
| Min glass size | 400*400mm |
| Max glass size | 2000*2500
|
| Washing glass thickness | 3-15mm |
| Washing glass speed | 2-12m/min
|
| Power supply | 34KW |
| Insulating max glass thickness | 50 mm
|
| Transmission glass speed | 45 m/min
|
| Air pressure | 1Mpa |
More details:
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black color
adopt servo motor and screw ball to drve
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black color
washing and drying section is made of 304 stainless steel
Hot sale Automatic Insulating Glass Machine and double glazing machine with blue and black color
Aluminum Spacer Bar loacation sector
Insulating Glass technological process
1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass 1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass 1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass 1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass 1800mm high double glazing glass machine using 304 stainless steel to product the double glazing glass
