Customized Insulating Glass Production Line Easy Operation 1 Year Warranty

Brand Name : WGM&Weili

Model Number : LBW2500PB

Certification : CE&SGS&BV

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with plywood pallet or according to customers` requirements 2.In plywood pallet and plastic film 3.In container

Name : Insualting glass machine

Usage : Making insulating glass

Color : Blue or customize

Dimension(LXWXH) : 21600x2800x3300mm

Power supply : 34kw

Min.glass size : 300x400mm

Max.glass size : 2200x3000mm

Warranty : 1 year

Contact Now

21 Meters can customize Insulating Glass Machine For Making Double Glass

This line can be upgrated and expanded according to customer is demands.

Usage:

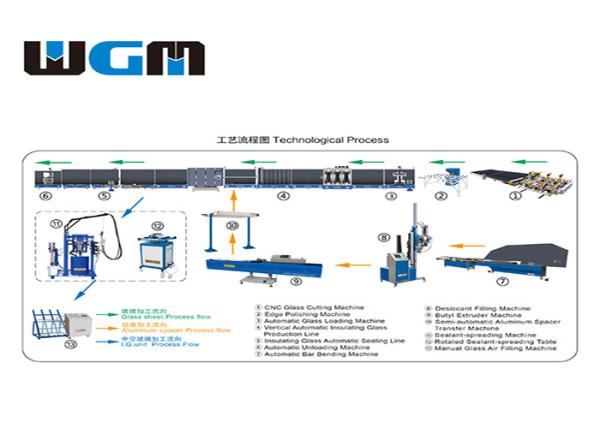

LBW2500PBVertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment,machine with PLC control, .It has seven parts:
1 Feeding section
2 washing and drying section
3 storage section
4 spacer put section
5 outside assembly section
6 press section
7 output section

Features:

This line is controlled by PLC and realizes the automatic control and frequency control of the motor speed of the whole line.

It adopts advanced assembly technique and solves the problems of uneven press and misplacement of the glass. The assembly section adopts limit switch and cylinder tank whose travel distance can be adjusted, making the operation easy and the location precise and the movement reliable.

There are two operation methods in the control panel: ‘automatic’ and ‘manual’. If the separate operation of each section or maintenance is needed, the ‘manual’ operation method is needed.

The structure and function of each section are as following.

Technique parameter:

Power Supply	380V 50 HZ 35KW
Dimension (L x W x H)	18390mmX2500mmX2950mm
Production quantity	700-800IG units/8hs
Max glass size	2200mmx3000mm
Min glass size	300mmx400mm
Washing glass thickness	3-15mm
Washing glass speed	0-10m/min
Insulating glass thickness	48mm(can adjust)
Transmission glass speed	45m/min
Compress air	0.8m³/min
Air pressure	0.8Mpa

Main components:

NO.	Name	Brand	Brand Place
1	PLC	OMRON	JAPAN
2	10.0 inch touch screen	KINCO	TAIWAN
3	Photoelectric switch	AUTONICS	KOREA
4	Limit switch	AUTONICS	KOREA
5	Transducer	TAIAN	TAIAN
6	Vacuum generator&sucker	SMC	JAPAN
7	Low voltage electric components	AIRTAC	TAIWAN
8	Solenoid valve	AIRTAC	TAIWAN
9	Cylinder	AIRTAC	TAIWAN
10	Liner guide rail	HIWIN	TAIWAN
11	Bearing of cleaning section	SKF	SWEDEN
12	AC digital servo motor	TECO	TAIWAN
13	Transmission motor	CPG	ZHEJIANG
14	Hydraulic Parts	HUA DE	BEIJING
15	Gas-type Filling	AIRTAC	TAIWAN
16	Oil pump	JILI	TAIWAN
17	Servo motor	SIEMENS	GERMANY

Packing & Delivery:

1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container
