LBW2200PC Vertical Automatic Glass Gas filling Inside Flat Press Production Line
Usage:
LBW2200PC Vertical Automatic Insulating Glass Gas Filling Inside Flat Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Features:
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Achieve the functions of outside and inside assembly,automatically fill argon gas ad stepped glazing.
4. The entire machine adopts the PLC to control the working condition,touch screen and man-machine interface.
5. LOW-E glass automatic diagnosis system.
6.Adopts no oil water-proof bearing in the washing section.
7.Brushes can wash coating glass,Low-E glass,variable frequency drive.
8.Produce stepped glass double glazing,triple glazing steppde insulating glass.
Technique parameter:
| Power supply: | 380V 50Hz |
| Air consumption: | 800L/min |
| Power: | 34kW |
| Max. process dimension: | 2200*3000mm, |
| Min. process dimension: | 300*450mm |
| Max thickness of the insulating glass: | 0-48mm |
| Max. process speed: | 45m/min |
| Washing glass thickness: | 3-15mm |
| Dimension: | 24100*2800*3300mm |
| Total weight: | 7500kg |
Main components:
| NO. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10.0 inch touch screen | KINCO | TAIWAN |
| 3 | Photoelectric switch | AUTONICS | KOREA |
| 4 | Limit switch | AUTONICS | KOREA |
| 5 | Transducer | TAIAN | TAIAN |
| 6 | Vacuum generator&sucker | SMC | JAPAN |
| 7 | Low voltage electric components | AIRTAC | TAIWAN |
| 8 | Solenoid valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Liner guide rail | HIWIN | TAIWAN |
| 11 | Bearing of cleaning section | SKF | SWEDEN |
| 12 | AC digital servo motor | TECO | TAIWAN |
| 13 | Transmission motor | CPG | ZHEJIANG |
| 14 | Hydraulic Parts | HUA DE | BEIJING |
| 15 | Gas-type Filling | AIRTAC | TAIWAN |
| 16 | Oil pump | JILI | TAIWAN |
| 17 | Servo motor | SIEMENS | GERMANY |
Packing & Delivery:
1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container

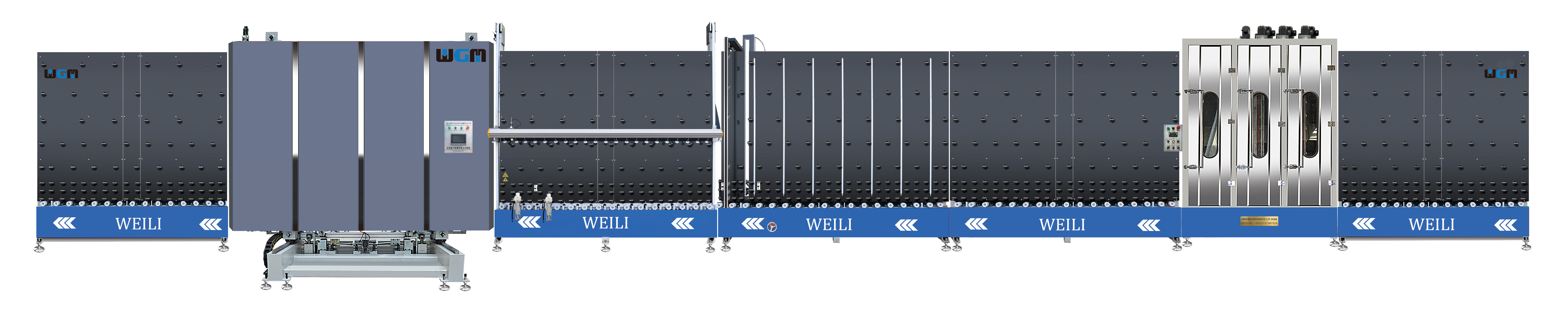

Machine specific photo

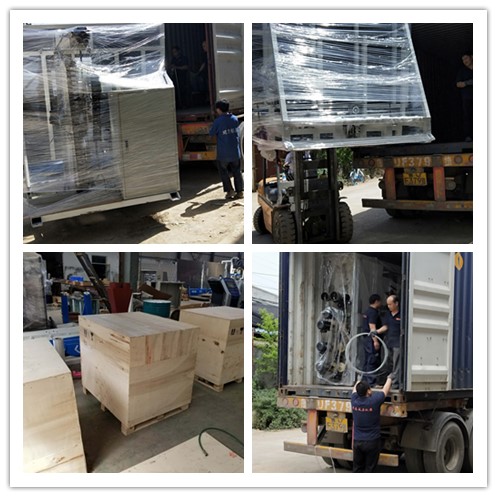

Machine delivery photos

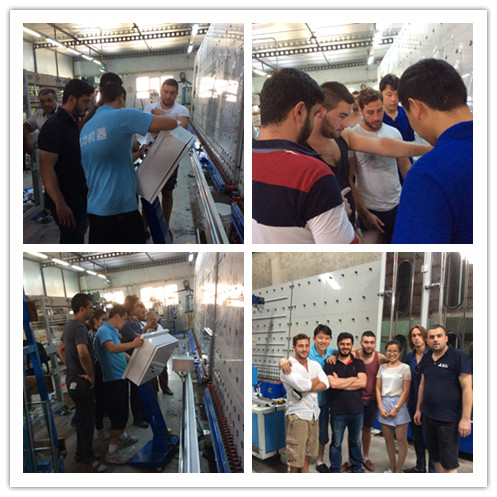

machine installation and training photos in Turkey
