LBW2200PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line
Usage:
LBW2200PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Features:
(1) Adopts the PLC to control the working condition,touch screen and man-machine interface.
(2) Low-e glass automatic diagnosis system
(3) Washing coating glass and low-e glass
(4) Adopts no oil water-proof bearing in the washing section
(5) Conserves energy interrupted type automatic operation system
(6) Produce double glazing and triple glazing
(7) Hydrulic pressure provides power for plate press section,able to open the 450mm for maintenance.
(8) Automatic energy-conservation discontinuity working system: the running section operate in full speed and the other sections that are not in work will automatically change into intelligent dormancy state. It saves the energy and decreases the power consumption.
(9) The low-voltage apparatus adopted the international famous brand.
(10) It having two kinds of operation model: automatic operation and manual operation
Technique parameter:
| Power Supply | 380V 50 HZ 35KW |
| Dimension (L x W x H) | 18390mmX2500mmX2950mm |
| Production quantity | 700-800IG units/8hs |
| Max glass size | 2200mmx2500mm |
| Min glass size | 300mmx400mm |
| Washing glass thickness | 3-15mm |
| Washing glass speed | 0-10m/min |
| Insulating glass thickness | 48mm(can adjust) |
| Transmission glass speed | 45m/min |
| Compress air | 0.8m³/min |
| Air pressure | 0.8Mpa |
Main components:
| NO. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10.0 inch touch screen | KINCO | TAIWAN |
| 3 | Photoelectric switch | AUTONICS | KOREA |
| 4 | Limit switch | AUTONICS | KOREA |
| 5 | Transducer | SCHNEIDER | FRANCE |
| 6 | Vacuum generator&sucker | SMC | JAPAN |
| 7 | Low voltage electric components | AIRTAC | TAIWAN |
| 8 | Solenoid valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Liner guide rail | HIWIN | TAIWAN |
| 11 | Bearing of cleaning section | SKF | SWEDEN |
| 12 | AC digital servo motor | TECO | TAIWAN |
| 13 | Transmission motor | CPG | ZHEJIANG |
| 14 | Hydraulic Parts | HUA DE | BEIJING |
| 15 | Gas-type Filling | AIRTAC | TAIWAN |
| 16 | Oil pump | JILI | TAIWAN |
| 17 | Servo motor | SIEMENS | GERMANY |
Details:

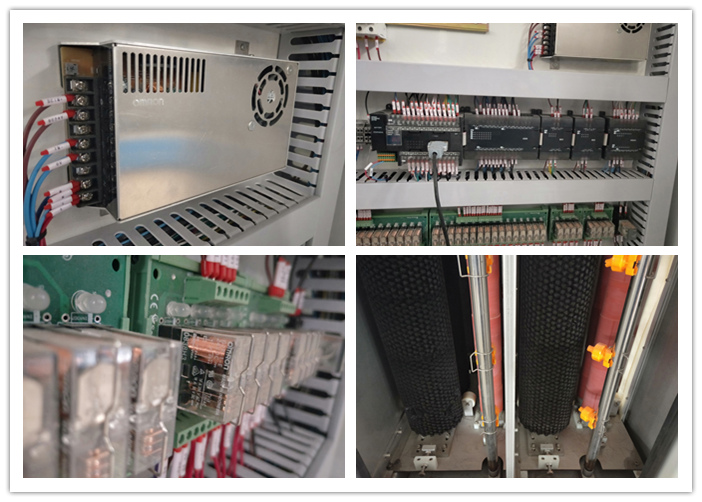

The machine adoptss Japanese OMRON's PLC and power supply.
And we used the Omron relay module to protect the PLC to expend the machinie's service life.
The machine adopts high-temperatuer resistance nylon wires to ensure can washing coating especially LOW-E glass .
After sales service
1 Online support,for example email and open camea to solve problems
2 Field installation, commissioning and training
3 Field maintenance and repair service
4 Video technical support
