2.5kw can do 32 different shapes automatic bar bending machine
Features:
1) The whole machine is controlled by Siemens PLC. The Man-machine contact screen is Weinview brand. The whole machine features easy and quick operation.
2) It adopts Taiwan Airtac pneumatic components. The movements of the machine are precise and reliable.
3) It adopts the Japan FUJI servo motor system to feed and bend the aluminium bar. The efficiency and bending precision are high.
4) The machine is eauipped with four storage area and can store four different sizes of aluminium bar.
5) When bending and cutting, the machine will automatically avoid the connection parts of the aluminium bar and the circle arc parts. After bending, the machine will cut the bar automatically.
6) It can be operated manully so it is easy to debug and maintain the machine.
7) The machine can produce 32 different shapes of aluminium bar, including the triangular, rectangle, positive pentagon, circle arc with a straight line.
8) It has automatic loading and unloading system.
Technical Parameter:
| Power supply | 2P 220V 50HZ |
Total power |
2.5KW |
Air pressure |
0.8Mpa |
Min spacer frame size |
250*380mm |
Max spacer frame size |
2500*3000mm |
Spacer width range |
5.5mm~24mm |
Overall dimension |
10500mm*2100mm*2200mm |
| Angle tolerances |
+/- 1 |
| Production speed | ≤30s/PS |
Main components:
| Name | Brand | Origin |
| PLC | Simens | Germany |
| Servo motor | Simens | Germany |
| Pneumatic components | Airtac | Taiwan |
| Photoelectric switch | Autonics | Korea |
| Low-voltage components | Schneider | France |
| Toch screen | Weinview | Taiwan |
Details:
Taiwan Airtac pneumatic components

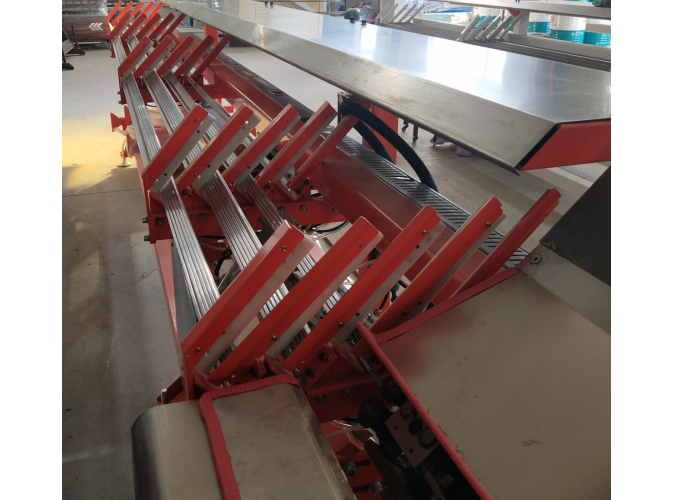

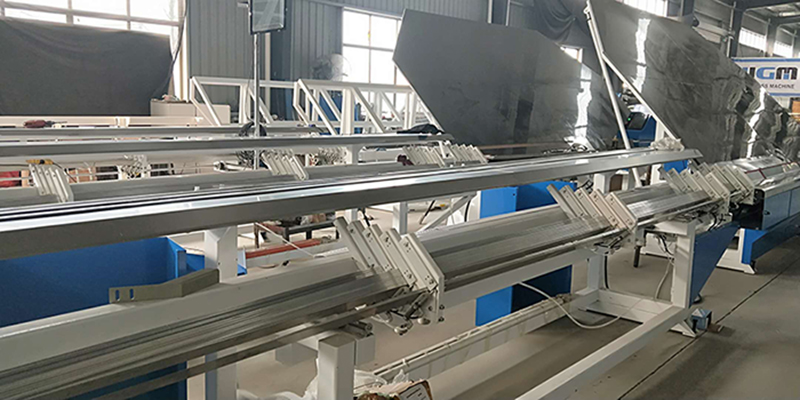

It can product and store the four models of aluminum at the same time

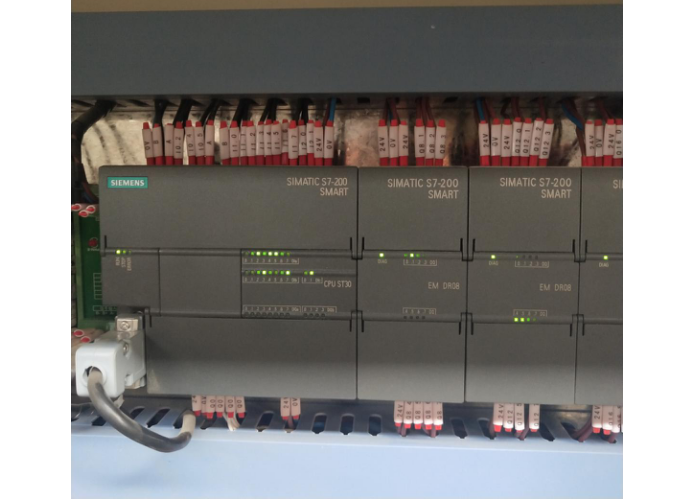

Germany Simens PLC
Packing & Delivery:
1.Machine packing with plywood pallet
2.In plywood pallet and plastic film
