Double Glazing Equipment with Cheap Price--2.2m IG Units Glass Processing Production Line with Gas Filling
Usage
——————————
LBW2000PC Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Multifunction Production Line is a high-efficiency insulating glass processing equipment. This line can achieve the Europe gas filling standard and satisfy all aspects of customers’ demands with advanced technology, high production efficiency and complete functions. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Product advantages
——————————
1. Whole process with PLC control system, man-machine interface touch screen .
2. Adopt Japan Keyence coating detection switch, automatic identification of coated glass and LOW-E glass.

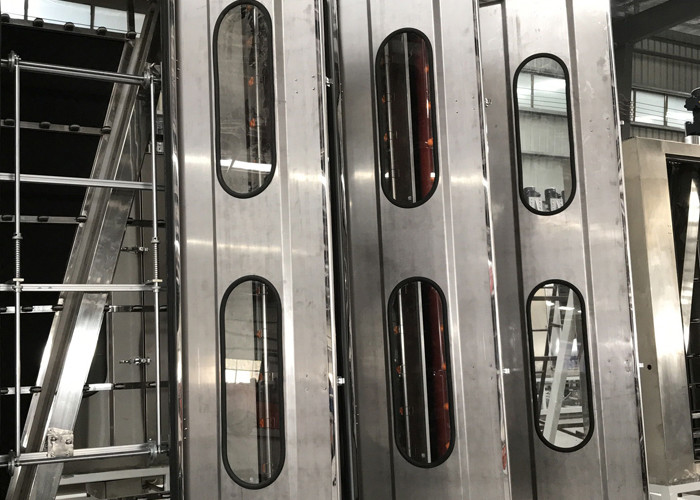

3.Washing machine, dryer shell made of high quality stainless steel material.
4. Upper drive in washing section, avoid water leakage of the sealing parts aging .
5. Each brush with separate motor control (six brush ,six motor )
6. Adopt Janpan SMC vacuum generator and sucker, nineteen suckers are in a reasonable partition, glass suction effect will be better.
7. Inner panel assembly and outer panel assemble ,two sets program ,ideal equipment for insulating glass and curtain wall.
8 .Seven frequency control result in reasonable transportation and efficient production.
9 . All photoelectric switches are supplied by Korean Autonics, ensure more
accurate positioning.
10. Inner panel assembly and outer panel assemble ,two sets program ,ideal equipment for insulating glass and curtain wall.
11. The speed reducer adopt precision casting aluminium, turbine are made
of casting tin bronze material
12. All bearings are from SKF, rotation is flexible without noise.
13. The conveying wheel is polyurethane materials, wear resistance and low noise.
14. The backup plate in transport line are Dew River moisture-proof plate,
beautiful, generous, damp proof.
15. All conveying shaft with grinding processing, flange processing, corrosion prevention to ensure the precision of the main shaft, equipped with high quality bearing, so the glass conveying is stable, high speed.
16. The rubber roller transmit as a whole in the cleaning machine , automatically adjust the distance between the two rollers according to the different thickness of glass
17. The brush are high quality 1010 nylon yarn, it can clean coated glass, the shaft head are stainless steel; brush filaments are close, ensure the glass cleaner .
18. Reasonable air knife angle design ,easy to adjust the angle and distance and ensure the blowing effect is better
19. Aluminum frame positioning adopt longitudinal, horizontal positioning and is adjustable , so that the aluminum frame positioning more accurately and conveniently, easy for one person operate large aluminium frame.

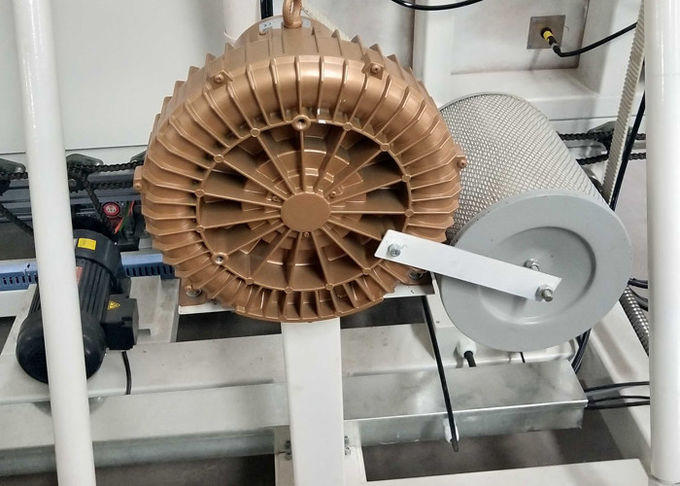

20. Low noise circulating wind system, and equipped with damper(air brake) function, has the effect of energy saving.
21. Siemens servo motor, ball screw control the size precision.
22. The large-stroke of pressing section can be pushed to 550 mm, convenient for maintenance
23.According to the different requirements of customers can realize unequal sheets and three sheets of glass production.
Main parameter
——————————
| | LBW2500PC | LBW2200PC | LBW2000PC |
| Power supply: | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Air consumption: | 800L/min | 800L/min | 800L/min |
| Power: | 38kW | 28.62kW | 19.8kW |
| Max thickness of insulating glass | 40mm | 40mm | 40mm |
| Max. process speed: | 45m/min | 45m/min | 45m/min |
| Washing glass thickness: | 3-12mm | 3-12mm | 3-12mm |
| Dimension(7 sections) | 22600*2500*3450mm | 20600*2500*3300mm | 18100*2500*2950mm |
| Total weight: | 6000kg | 5500kg | 5000kg |
Main electrical components
——————————
| No. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10．0inch Touch Screen(10.0) | KINCO | SHENZHEN |
| 3 | Photoelectric Switch | AUTONICS | KOREA |
| 4 | Limit Switch | AUTONICS | KOREA |
| 5 | Transducer | SCHNEIDER | FRANCE |
| 6 | Vacuum Generator & Sucker | SMC | JAPAN |
| 7 | Low-voltage electric components | SCHNEIDER | FRANCE |
| 8 | Solenoid Valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Straight Guide Rail | HIWIN | TAIWAN |
| 11 | Driving Wheel | Polyurethane | JOINT VENTURE |
| 12 | Soft Brushes | Φ0.08mm High Temperature Nylon Can wash low-e glass | JOINT VENTURE |
| 13 | Cleaning Section | 304 Stainless steel | CHINA |
| 14 | Bearing of Cleaning Section | SKF(oil-free lubrication waterproof)SKF | SWEDEN |
| 15 | AC digital servo motor | TECO | TAIWAN |
| 16 | Drive | TECO | TAIWAN |
| 17 | Transmission Motor | CPG(TAIBANG) | ZHEJIANG |
| 18 | Hydraulic Parts | HUA DE | BEIJING |
| 19 | Triplet | AIRTAC | TAIWAN |
| 20 | Gas-type Fitting | AIRTAC | TAIWAN |
| 21 | Oil pump | JILI | TAIWAN |
product photos
——————————
