Panasonic Servo Control System WLCM2500 Customizable Coating Deletion Doble Glazing Glass Machine
It can be upgraded according to customer'S demands
Main features:
1 It adopts Japaese Panasonic PLC control system.
2 The touch screen is Taiwan Weinview brand to ensure the operation more easy.
3 Four axis servo control system. Adopts Panasonic servo motor the operation more reliable.
4 Two-way glass input
5 Grinding wheel contact surface, automatic pressure regulation to ensure that the glass is not damaged
6 Adopts Omron Photoelectric swich can automatically measures the glass size
7. Auto dedusting function
9. Auto abrasive wheel modification function
10 Control system intelligently memorize batch processing function
11. Abnormal shape glass coating deleting function (optional)
The strength
1.Buyer can chose which side glass move into.
2.The wheel can be automatic repair by itself.
3.The machine includ a graphics library to delete different shape of glass.
4. We use five servo motors and high quality MP from panasonic in Japan, and adopt the linear guide rail from Hiwin in Taiwan.
5.The machine automatic absorb dust to keep the clean.
Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Main technique parameter:
| Max glass size | 2500x3500mm |
| Min glass size | 300x300mm |
| Glass thickness | 3-19mm |
| Glass transmission speed | 30m/min |
| Edge deleting speed | 0-15m/mn |
| Power supply | 15kw |
| Air supply | >=0.8Mpa |
| Dimension | 7900(L)x2100(W)x3350(H)mm |
Main components :
| No. | Name | Brand | Country |
| 1 | LOW VOLTAGE COMPONENTS | SCHINEIDER | FRANCE |
| 2 | PLC | PANASONIC | JAPAN |
| 3 | TOUCH SCREEN | WEINVIEW | TAIWAN |
| 4 | TRANSDUCER | SCHNEIDER | FRANCE |
| 5 | APPROACHING SWITCH | OMRON | JAPAN |
| 6 | PHOTOELECTRIC SWITCH | OMRON | JAPAN |
| 7 | SERVO MOTOR | PANASONIC | JAPAN |
| 8 | PNEUMATIC COMPONENTS | AIRTAC | TAIWAN |
| 9 | TRANSMISSION MOTOR | DPG | CHINA |
| 10 | PHOTOELECTRIC SWITCH | AUTONICS | KOREA |

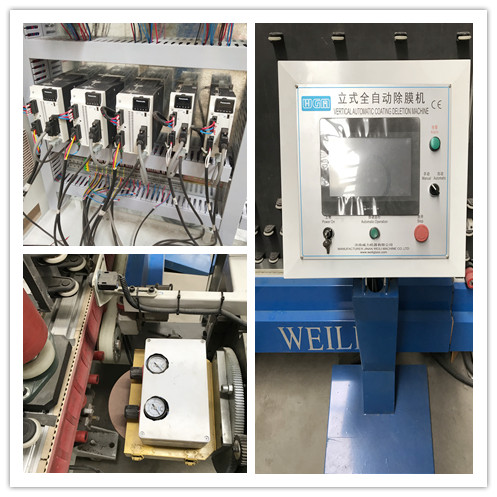

Details:

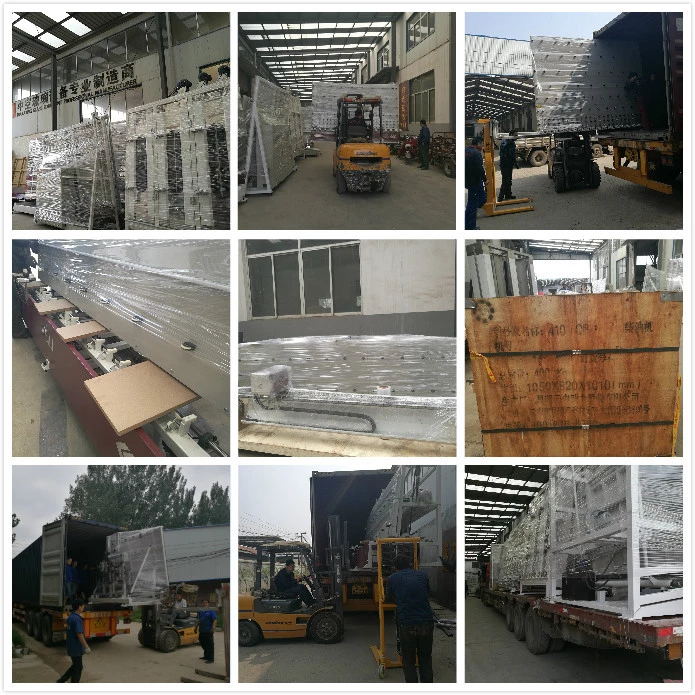

Packing and delivery:
1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container
Product Tags:
|
|
Coating Deletion Insulating Glass Machine With Panasonic Servo Control System Images
|
