Vertical Double Glazing Machinery , Automatic Glass Production Equipment

Name: Vertical Double Glazing Machinery Automatic Glass Production Equipment
Brand: WGM &WEILI
Price: 1 USD

Brand Name : WGM &WEILI

Model Number : WLCM25000

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 120sets per year

Delivery Time : 30 work days

Packaging Details : Machine packing with plywood pallet

Name : Vertical coating deletion machine

Usage : Making insulating machine

Color : Blue or customize

Warranty : 1 year

After service : Field maintenance and repair service

Weight : 2500kg

Control system : PLC

Productivity : 700-800units/8hs

Dimension(LxWxH) : 79000mmX2100mmX3350mm

Glass thickness : 3-19mm

Contact Now

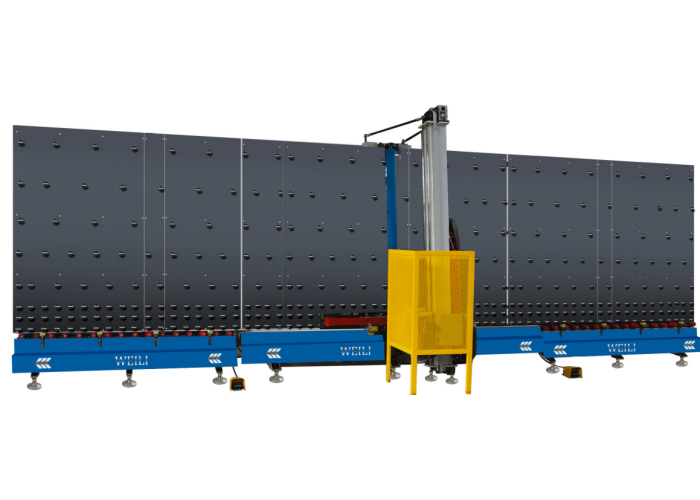

WLCM2500 Vertical Automatic low-e coating deletion machine

Features:

1 Panasonic PLC control system, touch screen interface

2 Low-e glass automatic coating identification,

3 four axis servo control system,

4 two way glass input,from right to left and from right to left

5 abrasive wheel connect surface auto adjustment system,you can choose different abrasive wheel to delete film

6 auto dedusting function, auto abrasive and modification function

Main components:

No.	Name	Brand	Country
1	Low voltage components	Schneider	France
2	PLC	Panasonic	Japan
3	Topuch screen	Weinview	China,Taiwan
4	Transducer	ENC	China
5	Approach switch	Omron	Japan
6	Photoelectric switch	Omron	Japan
7	Servo motor	Panasonic	Japan
8	Pneumatic components	Airtac	China,Taiwan
9	Transmission motor	DPG	China
10	Photoelectric switch	Autonics	Korea

Technique parameter:

Max glass processing size	2500*3000mm
Min glass processing size	350*400mm
Glass thickness	3-19mm
Glass transmission speed	30m/min
Edge deleting speed	0-15m/min
Abrasive wheel width	10/12/15mm
Air supply flow	0.2m^3/min
Air pressure	≥0.8Mpa
Total power	3p 380V,50HZ 7KW
Dimension(LWH)	790021003350mm

Packing & Delivery:

1.Machine packing with plywood pallet

2 according to customers` requirements
