WLCM2500 Vertical coating deletion machine
Features:
1. machine mechanical part is processiong by Laser cutting, CNC bending, high strength carbon steel with spray plastic back plate

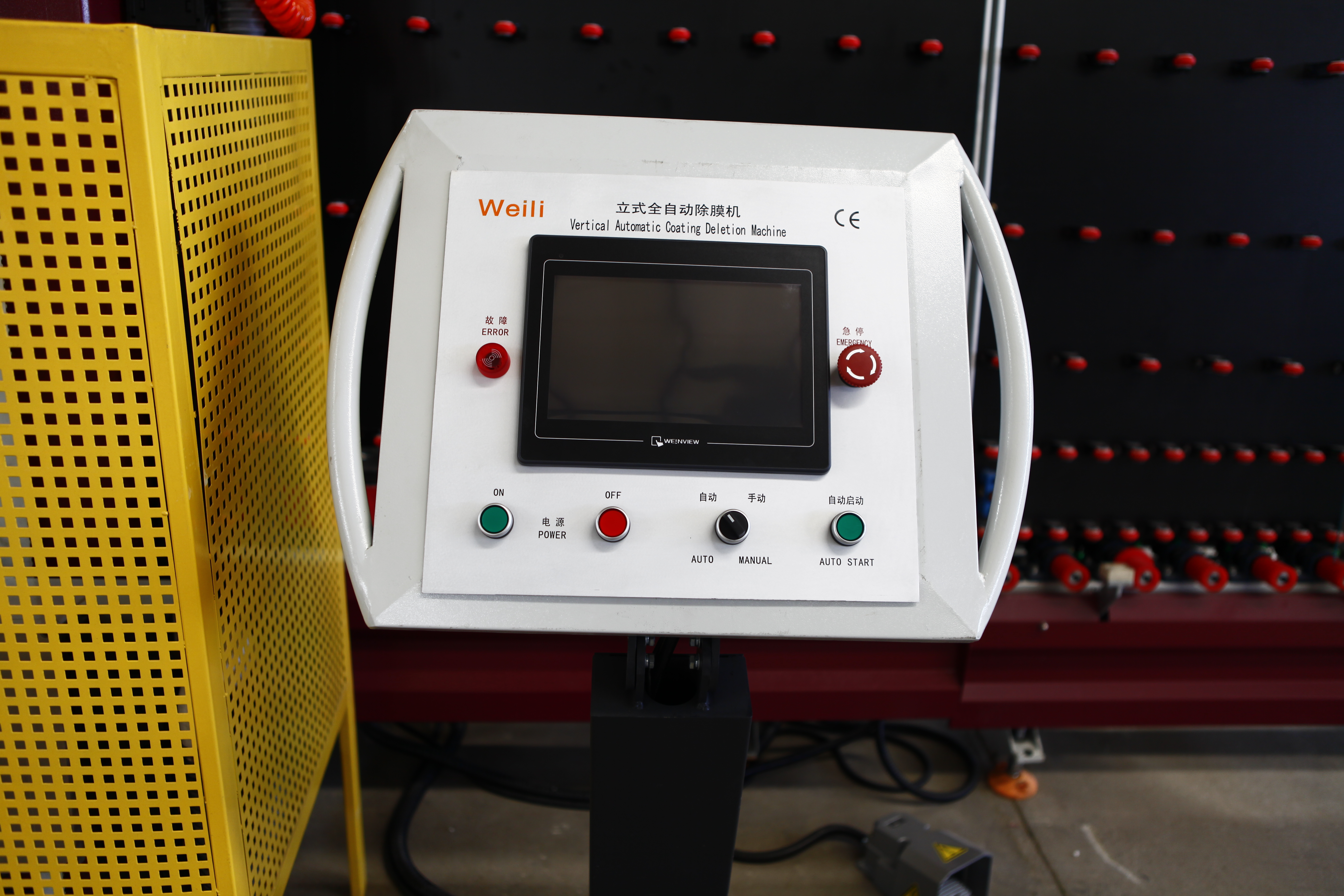

2. control by PLC, Touch screen interface easy to operate
WEINVIEW TOUCH SCREEN,all the data can input from the interface
3. LOW-E glass coating automatic identification
4. Four axis servo control system
5. Two-way glass come into different direction,you can choose working dricetion accoriding to your demands,from left to right and from right to left
6. Auto detect glass size,machine will measue glass size automatically and then delete edge.

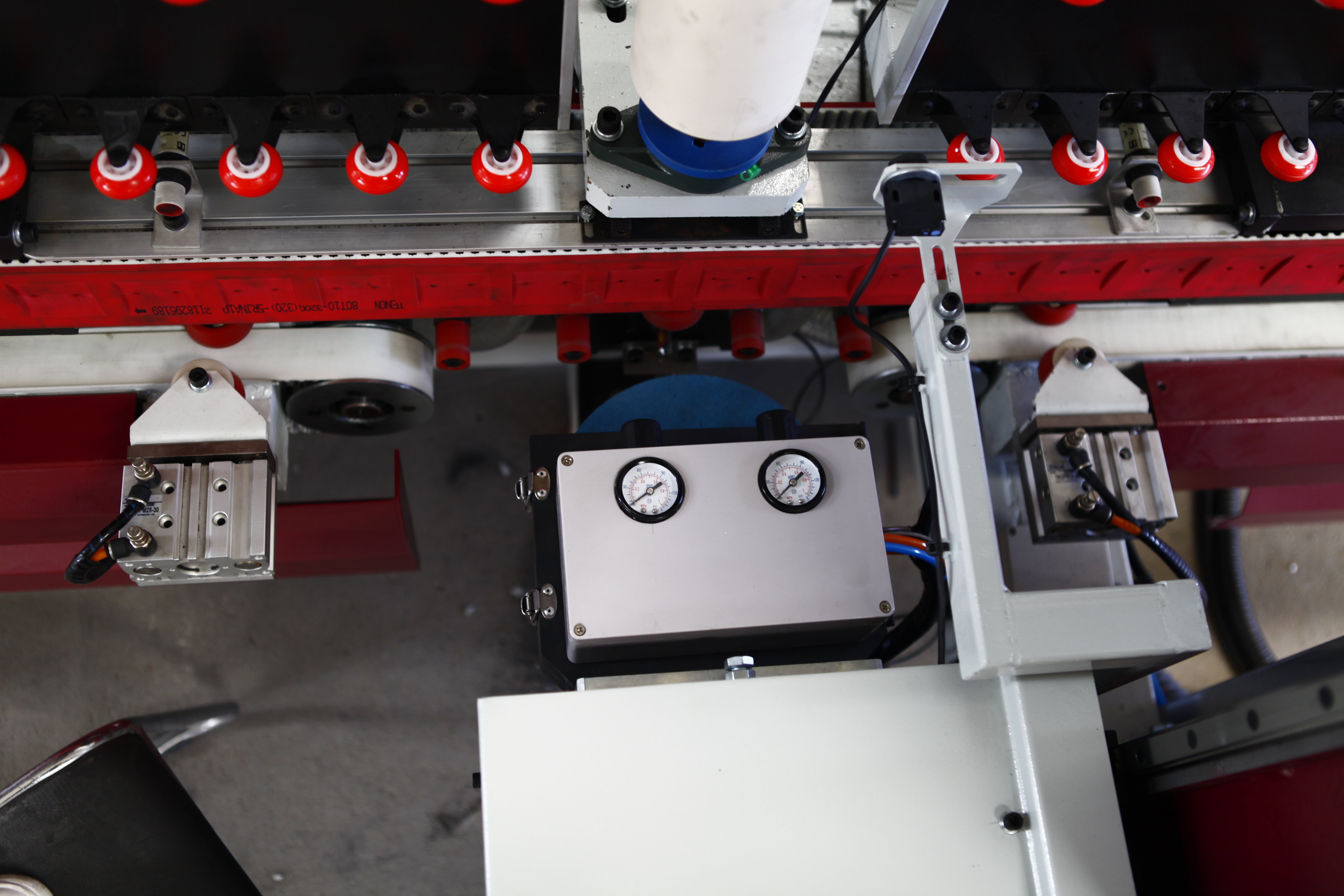

7. Abrasive wheel contact surface pressure auto adjustment system,Normal Abrasive wheel width 10m,12mm,15mm
8. Auto dedusting function
9. Auto abrasive wheel modification function
10 Control system intelligently memorize batch processing function
11. Linear guider location mechanism
12. Safety protection device
13. Abnormal shape glass coating deleting function (optional)
Main components:
| Brand | Spare parts | Brand Name | Remarks
|
| 1
| PLC | PANASONIC | JAPAN |
| 2 | Touch screen | WEINVIEW | Taiwan |
| 3 | Frequency changer | SCHNEIDER | FRANCE |
| 4 | Photoelectric switch | KEYENCE | Japan |
| 5 | Fiber-optic switch | SUNX | Japan |
| 6 | Low-voltage component | SCHNEIDER | France |
| 7 | Servo motor | PANASONIC | JAPAN |
Technique parameter:
| Max glass processing size | 2500*3000mm |
| Min glass processing size | 350*400mm |
| Glass thickness | 3-19mm |
| Glass transmission speed | 30m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air supply flow | 0.2m^3/min |
| Air pressure | ≥0.8Mpa |
| Total power | 3p 380V,50HZ 7KW |
| Dimension(L*W*H) | 7900*2100*3350mm |
Packing & Delivery:
1.Machine packing with plywood pallet
2 according to customers` requirements
Machines are in stock.
