2500MM Glass Loading Machine For Insulating Glass

Brand Name : WGM

Model Number : WLSP2500

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : USD 19000-38000/SET

Payment Terms : L/C, T/T

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with standard wooden case or according to customers` requirements 2.In wooden case and plastic film 3.In container

Name : Automatic insulating glass loading machine

Usge : Making insulating glass

Color : Blue or customize

Warranty : 1 year

After service : Field installation commissioning and training

Weight : 2000kg

Dimension(LxWxH) : 2650mmX2600mmX2900mm

Total power : 10kw

Contact Now

10kw WLSP2000Automatic insulating glass loading machine for making insulating glass

Features:

1 The back board adopts the laser cutting CNC bending welded steel plate, which has good strength and is not easy to be deformed.

2 The device of taking piece adopts imported linear guideway whose energy is generated by double servo motors. Its operation is smooth and accurate.

3 The vacuum sucker is imported, which has high negative pressure value and strong suction, so that the glass can be sucked safely without falling off.

4 Synchronous belt transmission, two-way feeding, to achieve barrier-free connections with other devices

5 There are two models with Auto and Manual for operation on the toch screen, it is convenient to operate it.

Technical Parameter:

Max glass size	2000mmX2600mm
Glass thickness	4-12mm
Suction arm speed	0-12m/min
The max size of suction arm stretched out	800mm
The work angle of swing arm	84-100°
Air consumption	100L/min
Total power	10kw
Total weight	2000kg
Dimension(LxWxH)	2650mmX2600mmX2900mm

Packing & Delivery:

1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container

2500MM Glass Loading Machine For Insulating Glass

Product Tags:

glass loading table

auto loader machine

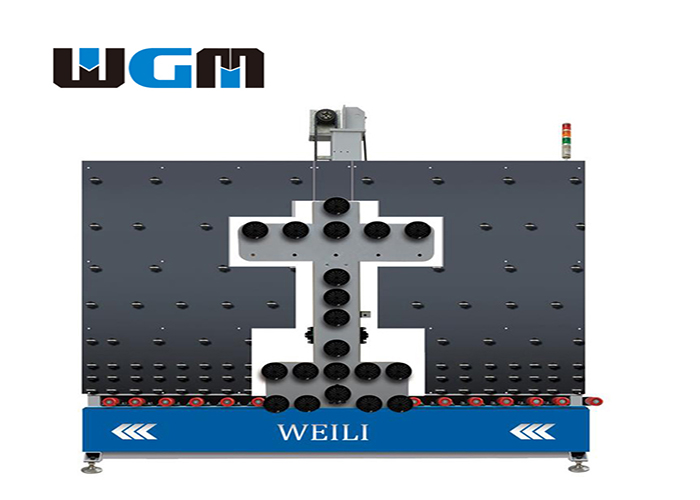

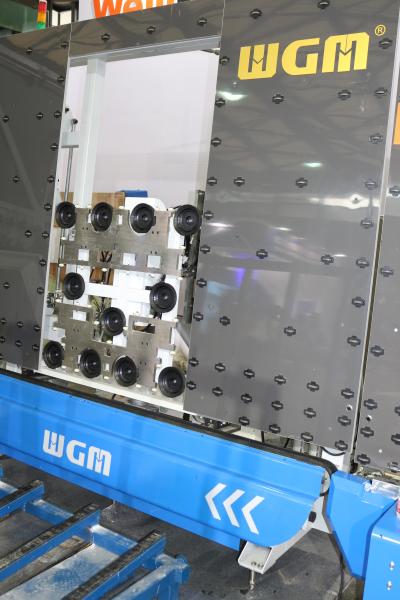

2500MM Glass Loading Machine For Insulating Glass Images
