Easy Operated Desiccant Filling Machine For Making Insulating Machine

Brand Name : WGM

Model Number : BFGJ03

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with standard wooden case or according to customers` requirements 2.In wooden case and plastic film 3.In container

Name : Automatic desiccant filling machine

Usage : Making insulating machine

Color : Blue or customize

Warranty : 1 year

After service : Field maintenance and repair service

Control system : PLC

Power supply : 2P 2200V 500HZ 2.5KW

Dimension : 1100mmX1080mmX3050mm

Contact Now

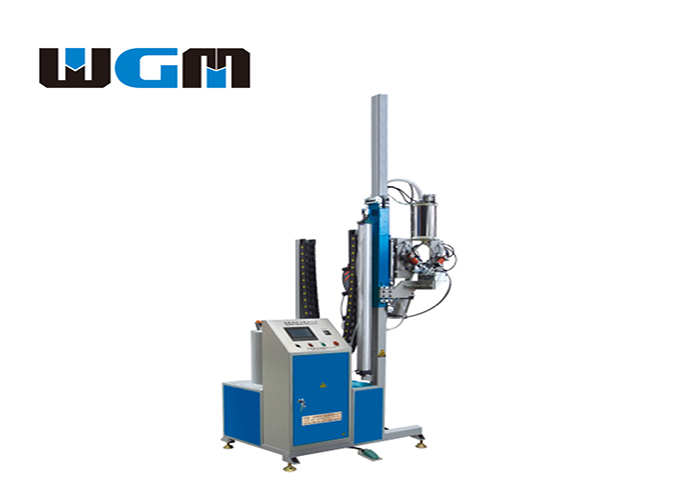

BFGJ03 automatic desiccant filling machine controlled by Simens PLC

Features:

1. Controlled by Siemens PLC. The contact screen is Kinco brand. The operation interface is visual and succinct.

2. The pneumatic components adopt Taiwan AIRTAC brand.

3. Automatically drill the holes, fill the desiccant and seal the sealant.

4. It is available to fill the bent spacer bars and the ordinary corner connected ones.It owns the unique and advanced feeding device.

5. The filling height can be adjusted according to the size of the spacer bar.

6. Touch screen makes the operation more easily.

Main Components:

Product name	Brand	Origin
PLC	SIMENS	JAPAN
Approach switch	AUTONICS	KOREA
Magnetic switch	AIRTAC	TAIWAN
Temperature controller watch	OMRON	JAPAN
Touch screen	KINCO	CHINA
Low-voltage electric component, like relay, breaker	SCHNEIDER	FRANCE
Pneumatic components, like solenoid valve, air cylinder	AIRTAC	TAIWAN

Packing & Delivery:

1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container

Easy Operated Desiccant Filling Machine For Making Insulating Machine
