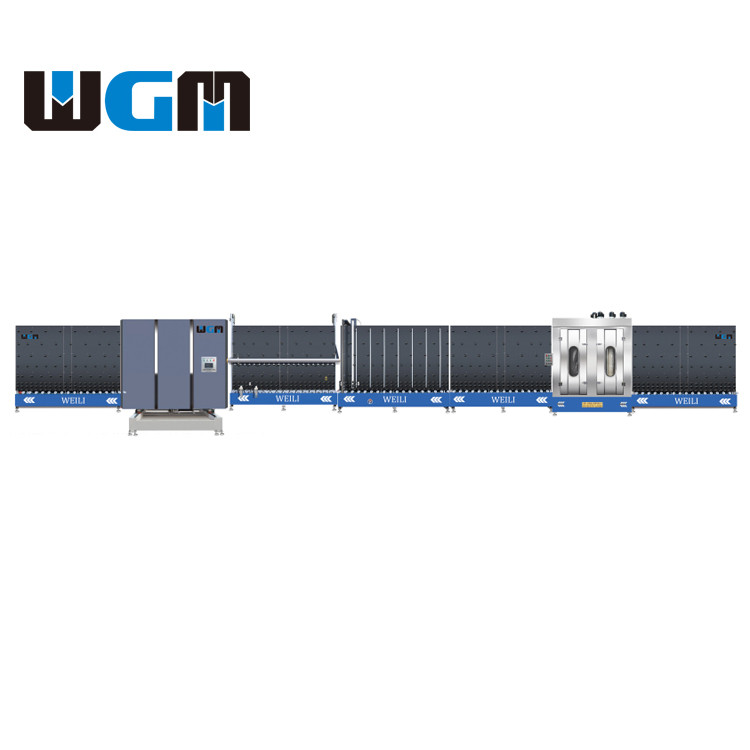

LBW2000PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line

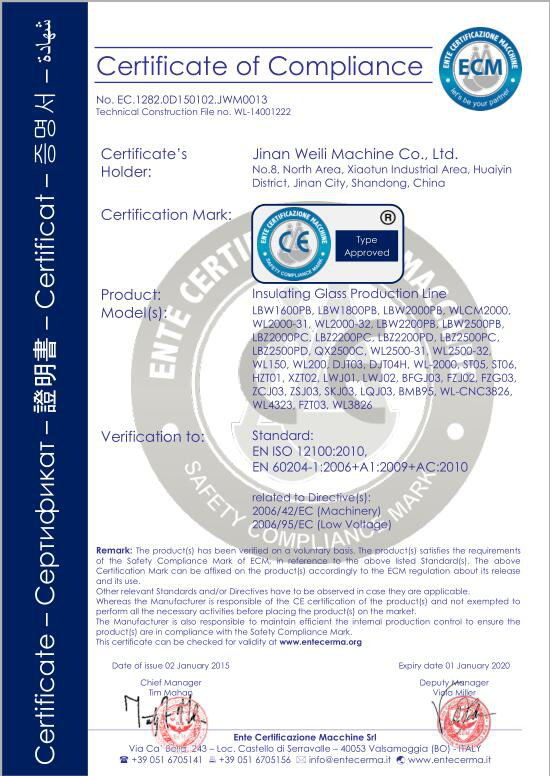

All machines are proved by CERTIFICATION
adopt PLC control the working condition, this production line can produce Low-e glass, double glazing, triple glazing. Which include 7 sections, that is feeding section., washing and drying section, storage section, light inspection section and spacer bar put section, outside assembly section, press and inside assembly section ,output section.
Feeding section
The glass panels are made of high density board which can resist the moisture.
The transmission wheels are made of polyurethane which can resist abrasion and corrosion. And the transmission wheels can be used with both sides. So it can save the material cost.
there is one low-e coating checking system, if you put glass on the wrong side, it will give an alarm.

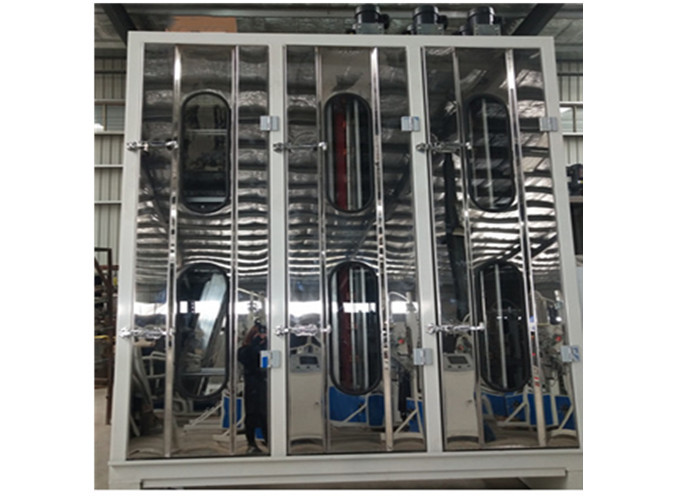

Washing and drying section
This section is made of stainless steel which can avoid rust and prolong the machine service life
1 Three pairs of brushes high temperature nylons, they are soft and can avoid scratching glasses.
six pieces soft brushes It can wash low -E glass Diameter 0.1mm nylon; High temperature brushes for regular glass; 0.07mm for low-e glass
Air Knife
2. The air knife is designed rhombic shape and produced by CNC bending, so it can strengthen the wind power and make the drying effect to arrive the best level
3. At the bottom, Sweden SKF oil-free lubrication water-proof bearings are adopted and avoid second pollution
4. On the back, the three-level water tank is equipped with three water pump, water heating device and water filtering system, guarantee the temperature and cleanness.
the high-pressure blower with heating device can produce circulating hot air which make drying effect reach best condition. Besides, all bearing foundations in the washing section are made of copper, aluminum or stainless steel which can resist rust and anti-oxidation.
Light inspection and aluminum spacer bar installation section
This section is used to inspect the washing and drying quality of the glass. The lights are put perpendicularly with the glass and the back board is painted black. It is easy to check the washing and drying effect
Aluminum frame positioning device can make our operator putting aluminum frame with high precise, besides it is easy to operate
Outside assembly section
This section was our new design ,it can improve efficiency than assembly inside,especially to avoide the malposition questions between two or three glasses.
These two wheels are controlled by Airtac cylinder. and they can easily push the glass tightly together.
The sensor can easily know the glass position and stop at right place when glass coming from the light and aluminum bar installation section.
Press and inside assembly section
1 At this section, all the data will be inputted into interface screen in advance.
2 The soft and moistureproof plate inside, and our press board can be open 450mm for maintenanc
Main Electric and Pneumatic Components
| No. | Name | Brand | Brand Place |
| 1 | PLC | SIMENS | GERMANY |
| 2 | 10.0inch Touch Screen(10.0) | KINCO | SHENZHEN |
| 3 | Photoelectric Switch | AUTONICS | KOREA |
| 4 | Limit Switch | AUTONICS | KOREA |
| 5 | Transducer | SIMENS | GERMANY |
| 7 | Low-voltage electric components | SIMENS | GERMANY |
| 8 | Solenoid Valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTACK | TAIWAN |
| 10 | Straight Guide Rail | HIWIN | TAIWAN |
| 11 | Driving Wheel | Polyurethane | JOINT VENTURE |
| 12 | Soft Brushes | φ180mm
High Temperature Nylon
Can wash low-e glass | JOINT VENTURE |
| 13 | Cleaning Section | 304 Stainless steel | CHINA |
| 14 | Bearing of Cleaning Section | SKF(oil-free lubrication waterproof)SKF | SWEDEN |
| 16 | Drive | TECO | TAIWAN |
| 17 | Transmission Motor | CPG(TAIBANG) | ZHEJIANG |
| 18 | Hydraulic Parts | HUA DE | BEIJING |
| 19 | Triplet | AIRTEC | TAIWAN |
| 20 | Gas-type Fitting | AIRTECK | TAIWAN |
Technical parameter
| Power Supply | 380V/50HZ 35Kw |
| Dimension(LxWxH) | 24500x2800x3450mm |
| Production quantity | 600-700IG units/8hs |
| Max Glass Size | 2500x2000mm |
| Min Glass Size | 400x400mm |
| Washing Glass Thickness | 3-15mm |
| Washing Glass Speed | 0-10m/min |
| Insulating Glass Thickness | ≤48mm |
| Transmission Glass Speed | 45m/min |
| Compressed Air: | 0.8m³/min |
| Air Pressure: | 1Mpa |
