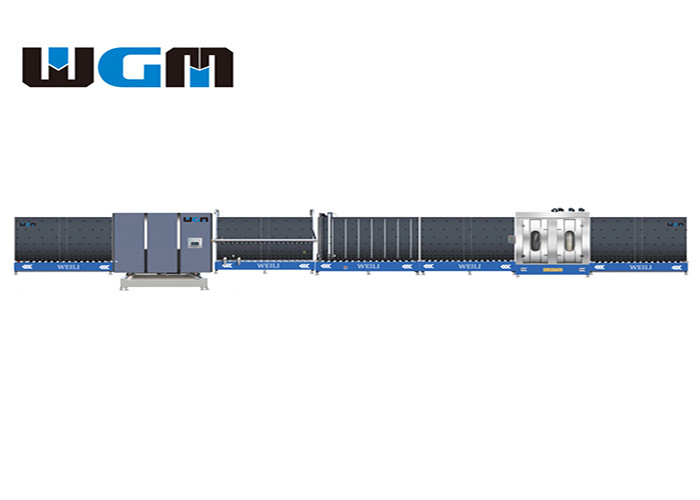

LBW1800PB Vertical Insulating Glass Machine Production Line for Double Glazing
——————————
| LBW1800PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance. | |
Main Feature
1. Controlled by PLC system, a completely automatic insulating glass production line (can produce LOW-E,coated insulating glass).
2.All components are high-quality products from china and abroad,ensure the machine's high service performance.
2.Stepless speed controlled by frequency chager,regulate transimission speed according to work state.
3.Bearings with two seats,high capacity to bear big glass.

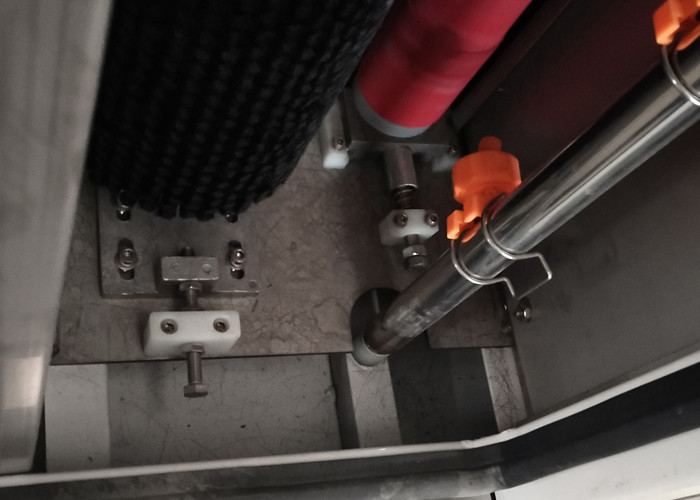

4.NC one-time-bending stainless steel inclined airknives&burushes made of heat-resistant nylon&double waterway curculation system&SKF oil-free water-proof bearings,promise perfect cleaning performance.
5. Angle position device in assembly section,guarantee the aluminum profile be installed without misplace.

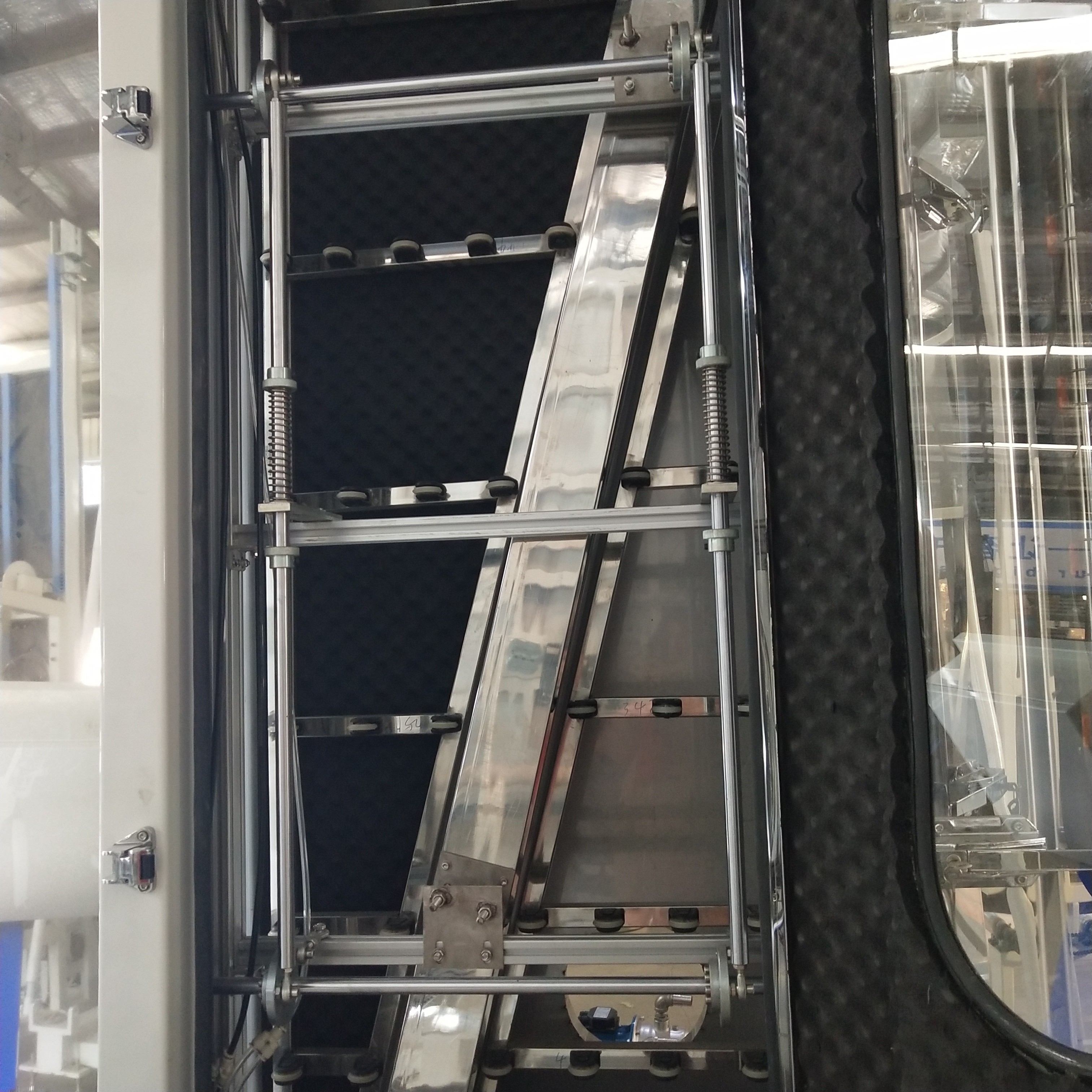

6. Two retainers in press section,make sure two pieces of glass can be pressed without misplace.Front and back boards can open 450mm,convinient to examine and repair.
7.Stepping motor make the machine runns accurately.
8. Bases the customers' different requdst, the entire machine can be improved and produce the Step IG Unit and Three Piece IG production(It is a special custom-made order).
Main Technique parameter
| Power Supply | 380V 50Hz |
| Total Power19.5 | 19.5 |
| Cleanout Speed | 2--12m/min |
| Max. Work Speed | 48m/min |
| Min. Glass Size | 280*450mm |
| Max. Glass Size | 2500*1800 |
| Max Insulating Glass Thickness | 48mm |
| Air Consumption | 800L/min |
| Dimension | 16290*2500*2890 |
| Total Weight | 5500KG |
Main Electrical Components
| No. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10．0inch Touch Screen(10.0) | KINCO | SHENZHEN |
| 3 | Photoelectric Switch | AUTONICS | KOREA |
| 4 | Limit Switch | AUTONICS | KOREA |
| 5 | Transducer | SCHNEIDER | FRANCE |
| 6 | Vacuum Generator & Sucker | SMC | JAPAN |
| 7 | Low-voltage electric components | SCHNEIDER | FRANCE |
| 8 | Solenoid Valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Straight Guide Rail | HIWIN | TAIWAN |
| 11 | Driving Wheel | Polyurethane | JOINT VENTURE |
| 12 | Soft Brushes | Φ0.08mm High Temperature Nylon Can wash low-e glass | JOINT VENTURE |
| 13 | Cleaning Section | 304 Stainless steel | CHINA |
| 14 | Bearing of Cleaning Section | SKF(oil-free lubrication waterproof)SKF | SWEDEN |
| 15 | AC digital servo motor | TECO | TAIWAN |
| 16 | Drive | TECO | TAIWAN |
| 17 | Transmission Motor | CPG(TAIBANG) | ZHEJIANG |
| 18 | Hydraulic Parts | HUA DE | BEIJING |
| 19 | Triplet | AIRTAC | TAIWAN |
| 20 | Gas-type Fitting | AIRTAC | TAIWAN |
| 21 | Oil pump | JILI | TAIWAN |
