Automatic Vertical Insulating Glass Processing Equipment Double Glazing Glass Easy Operation High Efficiency

Brand Name : WGM

Model Number : LBW2500PB

Certification : CE/SGS/BV/ISO

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Supply Ability : 10 Sets per Month

Delivery Time : 45 to 60 days

Packaging Details : 1.Machine packing with standard wooden case or according to customers` requirements 2.In wooden case and plastic film 3.In container

Voltage : 380V 50HZ

Weight : 7600kg

Usage : Making Insulating Glass

Dimension(L*W*H) : 21600x2800x3450mm

Control System : PLC

Washing glass thickness : 3-15mm

Washing glass speed : 0-10m/min

Transmission speed : 45m/min

Warranty : 1 Year

Colour : Blue (optional)

Contact Now

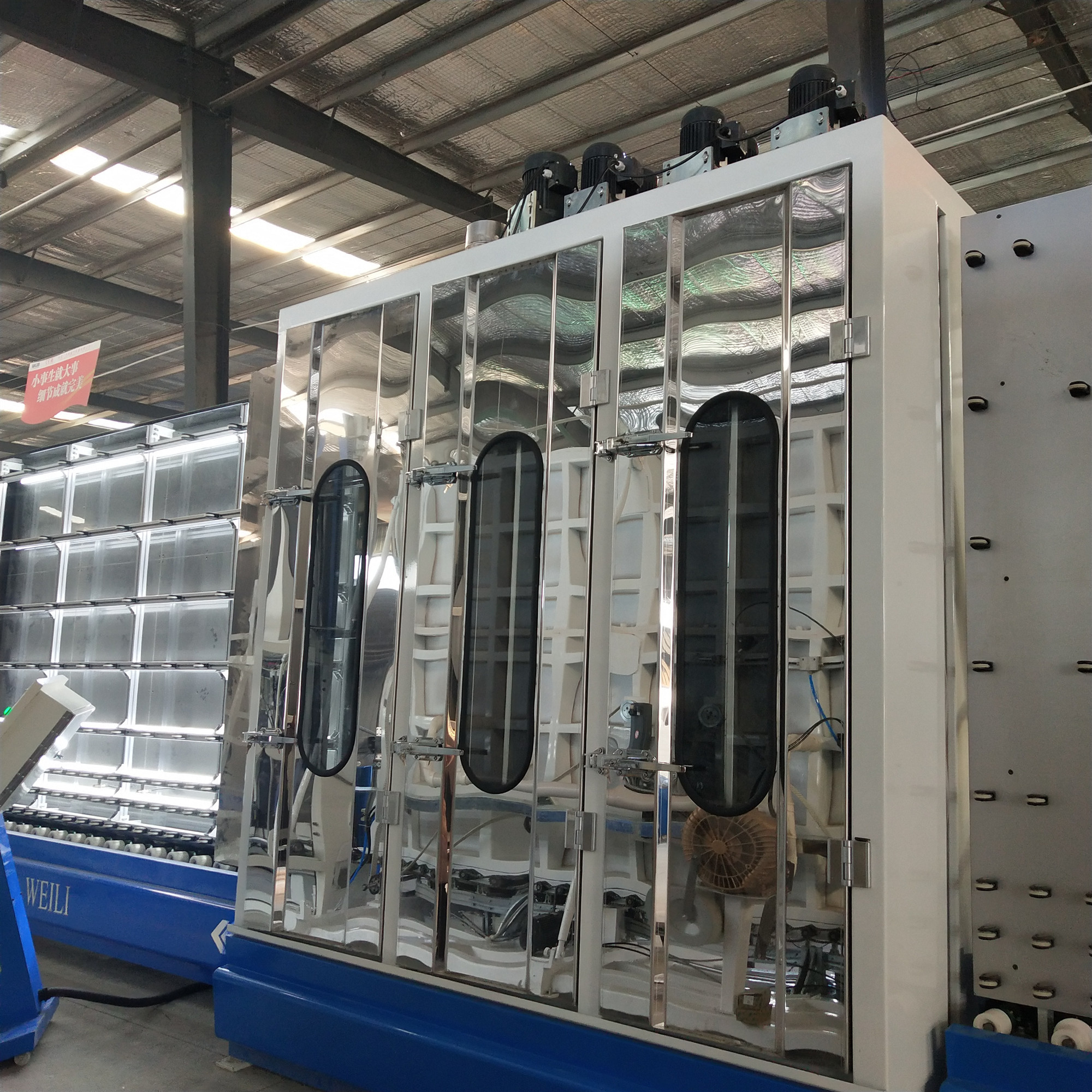

Insulating Glass Processing Equipment LBW2500PB Vertical Glass Washing and Drying Machine Double Glass Machine

——————————

LBW2500PB Vertical Automatic Insulating Glass Outside Assembly Flat Press Production Line is a high-efficiency insulating glass processing equipment. This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.

Function

1.The machine has glass feed section, glass washing and drying section, light inspection section.

2. The first section is equipped with LOW-E glass check system. When the coated side is wrongly put, the system will give alarm and the convey will stop automatically.

3.Three pairs of brushes driven separately by 3 motors. Brushes thread are imported soft material, special for LOW-E glass.

4. Washing section uses SKF brand oil-free and water-proof bearings. It will not cause second contamination to glass.

5. Static electricity remove device is equipped at the end of washing section. It can remove the static electricity of the glass so the dust will not fall on the glass.

6. Washing speed is controlled by an inverter.

Main Technical Paramenter

Power Supply:	380 V 50Hz
Total Power:	28.62/27.75 KW
Cleanout Speed:	2-12m/min
Max.Working Speed:	45m/min
Max.Insulating Glass Thickness:	40mm
Washing Glass Thickness:	3-12mm
Air Consumption:	800L/min
Total Weight:	5500/5000Kg

Main Electrical Components

No.	Name	Brand	Brand Place
1	PLC	OMRON	JAPAN
2	10．0inch Touch Screen(10.0)	KINCO	SHENZHEN
3	Photoelectric Switch	AUTONICS	KOREA
4	Limit Switch	AUTONICS	KOREA
5	Transducer	SCHNEIDER	FRANCE
6	Vacuum Generator & Sucker	SMC	JAPAN
7	Low-voltage electric components	SCHNEIDER	FRANCE
8	Solenoid Valve	AIRTAC	TAIWAN
9	Cylinder	AIRTAC	TAIWAN
10	Straight Guide Rail	HIWIN	TAIWAN
11	Driving Wheel	Polyurethane	JOINT VENTURE
12	Soft Brushes	Φ0.08mm High Temperature Nylon Can wash low-e glass	JOINT VENTURE
13	Cleaning Section	304 Stainless steel	CHINA
14	Bearing of Cleaning Section	SKF(oil-free lubrication waterproof)SKF	SWEDEN
15	AC digital servo motor	TECO	TAIWAN
16	Drive	TECO	TAIWAN
17	Transmission Motor	CPG(TAIBANG)	ZHEJIANG
18	Hydraulic Parts	HUA DE	BEIJING
19	Triplet	AIRTAC	TAIWAN
20	Gas-type Fitting	AIRTAC	TAIWAN
21	Oil pump	JILI	TAIWAN
