LBW2200PC Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Production Line
It can be upgraded according to customer demands
LBW2200PC Blue color Vertical Insulating Glass Gas Filling Production Line
Main features:
1. It realizes the function of internal and external combined automatic argon-filling and stepped glass.
2 PLC control working status and touch screen.
3. Automatic detection of coated surfaces or coated glass and Low-e glass.
4 The air knife can be adjusted automatically according to the thickness of the glass.
5 brush speed variable frequency drive.
6. Aluminum gasket and glass automatic positioning system.
7. Automatically detect the length and height of the glass and automatically adjust the optimal inflation time.
8 automatic gas filling machine uses 4 servo motors, with assembly, pressing and automatic gas filling functions. Ensure that the argon concentration of the hollow glass is >=90%. With remote monitoring and program upgrades. The plate used in this machine is a high-density plate, which is moisture-proof and not easily deformed.
Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Main technique parameter:
| Power Supply | 380V 50Hz |
| Total Power | 34Kw |
| Cleanout Speed | 2--12m/min |
| Max. Work Speed | 48m/min |
| Min. Glass Size | 300*450mm |
| Max. Glass Size | 2200*3000 |
| Max Insulating Glass Thickness | 40mm |
| Air Consumption | 800L/min |
| Dimension | 21300*2800*3300mm |
| Total Weight | 5500/5000kg |
Main components :
| No. | Name | Brand | Origin |
| 1 | PLC | ORMON | Japan |
| 2 | Touch screen | KINCO | Taiwan |
| 3 | Glass coating inspecting device | ORMON | Japan |
| 4 | Transducer | SCHNEIDER | Taiwan |
| 5 | Optoelectronic switch | AUTONICS | Korea |
| 6 | Low-voltage component | SCHNEIDER | France |
| 7 | Solenoid valve | AIRTAC | Taiwan |
| 8 | Bearing in washing section | SKF | Switzerland |
| 9 | Delivery motor | DTG | Shanghai |
| 10 | Gas-type fitting & Triplet | AIRTAC | Taiwan |
| 11 | Air pipe | AIRTAC | Taiwan |

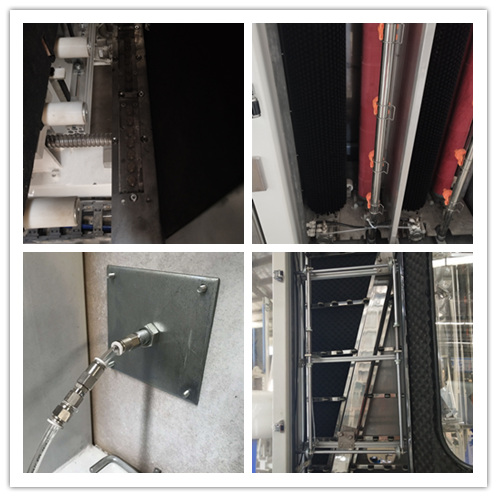

Details:
Packing and delivery:
1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container
