2000*2500mm Glass Production Line , Automatic Double Glass Machine PLC Control

LBW2000PC-07 vertical insulating glass automatic argon gas filling flat press production line

Main feature

adopt PLC control the working condition, this production line can produce Low-e glass, double glazing , triple glazing and step glazing.

Machine include 7 sections, that is input section., washing and drying section, storage section, light inspection section and spacer bar put section, outsidde assembly section ,press section ,output section.

Specification:

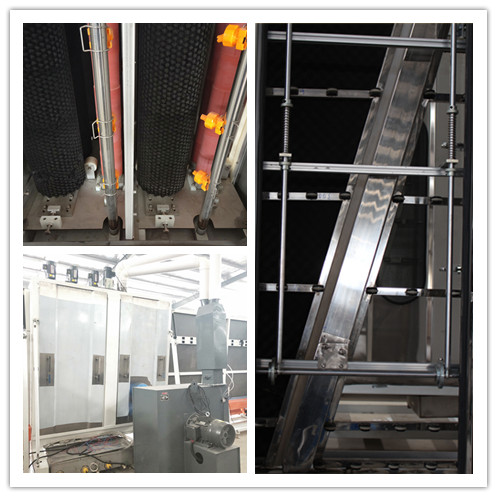

washing and drying section

2.1 whole washing section is made of stainless steel,avoid rust

2.2 6 pieces nylon soft brushes avoid scratch the glass

2.3 CNC bending air knife, so it can be strength the motivity of the wind and make the drying effect obtain the best

2..4 water tank is equipped with water heating device and water filtering system, guarantee the glass washing temperature and cleanness.

Aluminum spacer put section:

this section we have side and bottom positioning to put aluminum spacer bar with high precision

Outside assembly section:

2.5 Sensor install before the press to measure glass height so that press will fill gas according to glass size ,then save more gas

3 Press and argon gas filling secton

3.1 18 SMC Gas filling solenoid valve to supply gas source to gas filling hole

3.2 SIEMENS servo motor drive screw rolls and control press section open and close

3.3 Press can open 450MM for maintenance

Technical parameter

Main electric components

After sales service

1 Online support,for example email and open camea to solve problems

2 Field installation, commissioning and training

3 Field maintenance and repair service

4 Video technical support
