Manual Sealing Sealant Extruder Sytem Of IG Units Using 2 Component Sealants

Name: Manual Sealing Sealant Extruder Sytem Of IG Units Using 2 Component Sealants
Brand: WGM&WEILI
Price: 6000 USD

Brand Name : WGM&WEILI

Model Number : ST06

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : USD 6000-12000/SET

Payment Terms : L/C, T/T

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with standard wooden case or according to customers` requirements 2.In wooden case and plastic film 3.In container

Name : Sealant-spreading machine

Usage : Making insulating glass

Color : Blue or customize

Warranty : 1 year

After service : Field installation commissioning and training

Total weight : 700kg

Dimension : 1100mmX950mmX1630mm

MIx rate : 6:1-14:1

Contact Now

Manual silicone sealant spreading equipment for insulating glass machine

Features:

1 The machine can be used to spread two-component Polysulfide glue or silicone glue.

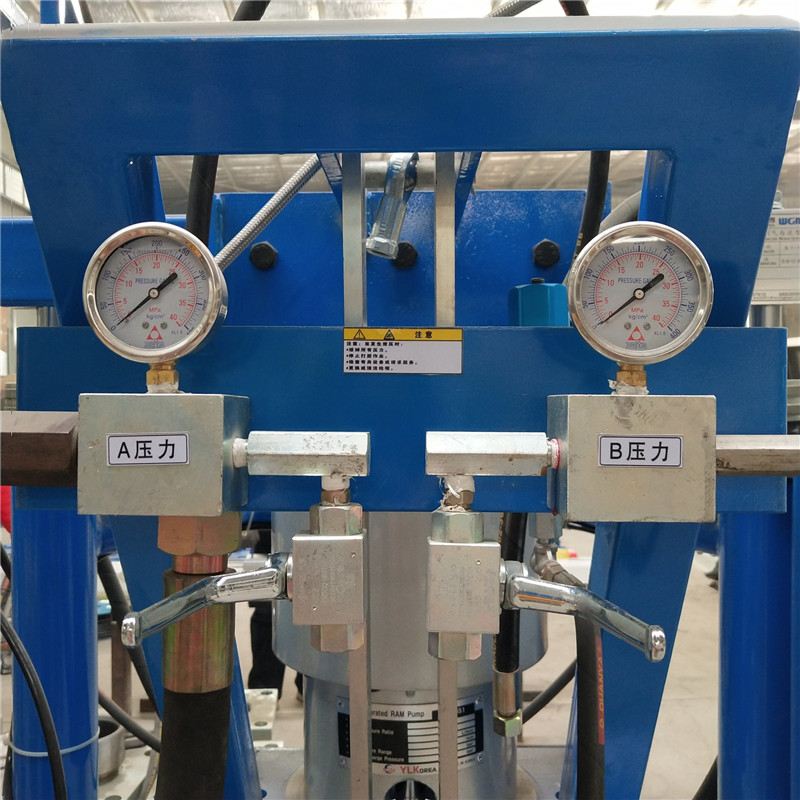

2 This machine including A and B component glue pump which are driven by air motor system and imported by Korea
3The machine's curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.

Manual Sealing Sealant Extruder Sytem Of IG Units Using 2 Component Sealants
4Using adjustable supercharging ratio of synchronous linkage mechanism, adapt to material ratio of different material(6: 1-14: 1), and have special ratio inspection station.
5 Employ international popular static mixer reciprocating belts, volume is small and weight is light. Import mixed core is reliable and evenly.
All parts connected with fluid water adopt high quality stainless steel, seal ring adopt import excellent Teflon material and seal is durable and reliable.

Technique parameter:

Mix ratio	6:1~14:1 changeable
Max. amount of extruded glue	4L/min
Pump A platen diameter	55 gallon(200L) φ565mm
Pump B platen diameter	5 gallon (20L) φ285mm
Max. air consumption	0.8 CBM/min
Max. extruding pressure	19Mpa
Air supply	0.5~0.8Mpa
Overall dimensions	1100 x 950 x 2500mm

Packing & Delivery:

1. Machine packing with plywood pallet or according to customers` requirements
2. In plywood pallet and plastic film
3. In container

Manual Sealing Sealant Extruder Sytem Of IG Units Using 2 Component Sealants
