This machine can be divided into three parts: feeding section, washing and drying segment, light inspection section,
Feeding section
There is a coating identifying system and alarm system, when the coating side is placed wrongly, the transmission will stop automatically and the system will give an alarm. On the contrary, the glass will go without barrier.
Washing and drying section
This section is made of stainless steel which can avoid rust and prolong the machine service life

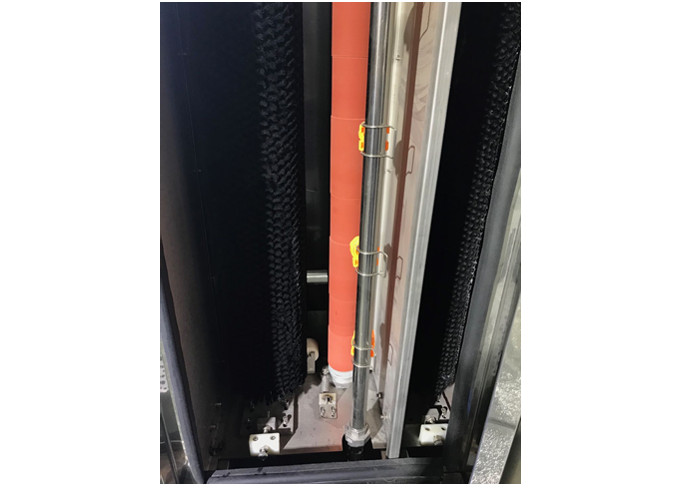

1Three pairs of brushes high temperature nylons, they are soft and can avoid scratching glasses.
2At the bottom, Sweden SKF oil-free lubrication water-proof bearings are adopted and avoid second pollution
3On the back, the water tank is equipped with water heating device and water filtering system, guarantee the temperature and cleanness.
4 The air knife is designed rhombic shape and produced by CNC bending, so it can be stre ngth the motivity of the wind and make the drying effect obtain the best
Light inspection section
This section is used to check washing quality and guarantee product quality. And the black color is compared to the glass panels, so it is very easy to check washing quality.
Technical Parameter
| Power Supply: | 380V 50Hz
|
Total Power: | 6 Kw
|
Air Consumption | 200L/min
|
| Max.Processable Glass Size: | 2500*3000mm
|
Min.Processable Glass Size:
| 280*450mm
|
| Processable Glass Thickness: | 3-19mm
|
| Max.Processable Speed: | 12m/min
|
Dimension:
| 9000*3000*3000mm |
Total Weight:
| 2000 Kg |
Pre-Sales Service
* Inquiry and consulting support.
* Visiting our Factory.
* Professional customize
After-Sales Service
* Engineers available to service machinery overseas.
* Online support
* Video technical support
* Field maintenance and repair service
* Field installation commissioning and training
FAQ:
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filiing machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
