Semi Auto Double Glazing Glass Production Equipment Aluminum Spacer Bar Bending

Brand Name : WGM

Model Number : LWJ0W

Certification : CE UL

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per year

Delivery Time : 5 work days

Packaging Details : Plastic plywood and wooden package

Machine Name : Semi auto double glazing aluminum spacer bar bending machine

Usage : Semi auto double glazing aluminum spacer bar bending machine

Max size : 2500*3000mm

Min size : 250*380mm

Size tolerances : <0.5mm

Air pressure : >0.8MPA

Angle tolerances : <1mm

Production speed : <30s/pcs

Dimension(L.W.H)) : 4000*1300*1700mm

Supply : 1kw

Contact Now

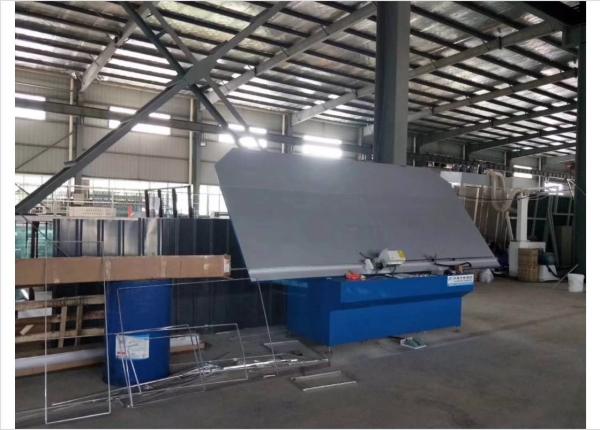

Semi Auto Double Glazing Glass Production Equipment Aluminum Spacer Bar Bending

Feature:

Insulating glass Aluminum spacer bending machine / Automatic aluminum spacer bar bending machine

We have two models, Semi automatic model and CNC automatic model.

1. Semi automatic aluminum spacer bending machine

It can only bend aluminum spacer frame with rectangle and square shape.

This machine bend with manual way. The locating system is with logic switch control to finish bending. it can bend with 0-130 angle.

Technique parameter

Air pressure: 0.50.8Mpa ; aluminum bar specification: 5.5-20mm

processing profile dimension: Min370×370mm; Max 2000×2000mm

bending angle: 90°

2. CNC automatic aluminum spacer bending machine

It can bend aluminum spacer with different shape, such as rectangle, positive five square, circle, positive hexagon and so on.

Main Technical data:

External dimension: 10500x2200x2600mm

Processing parameters: 4 series and 32 different sizes (8 different sizes for each series) of rectangular aluminum frames can be input in the equipment. Up to 9999 pieces of aluminum frames of same size can be fabricated within one batch.

Sizes of suitable raw aluminum bar are : width 6mm~24mm, Length: 4000mm~6000mm.

Size of fabricated aluminum frame: Minium 200x280mm (rectangular)

Maximum: 2000x2000mm

Processing speed: within 29 per second (1000x1000mm)

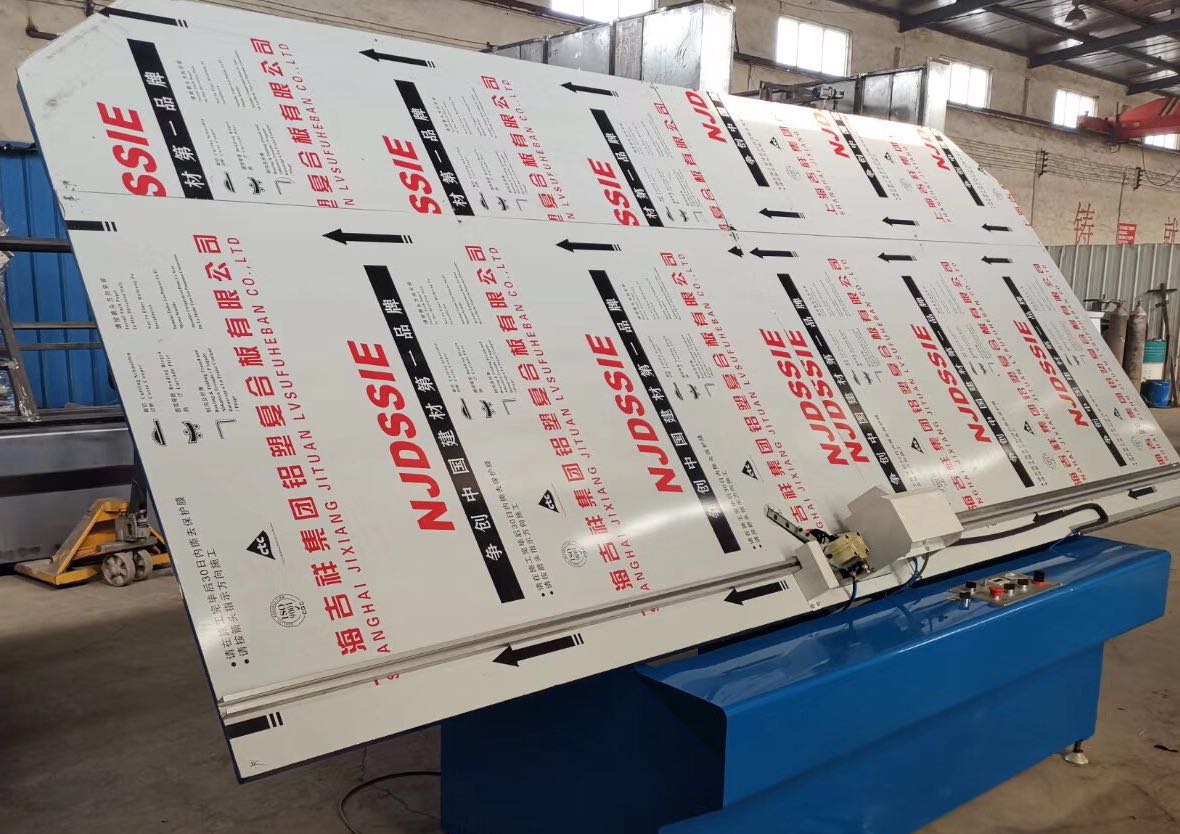

Machine is shipping to the customer factory:

Semi Auto Double Glazing Glass Production Equipment Aluminum Spacer Bar Bending

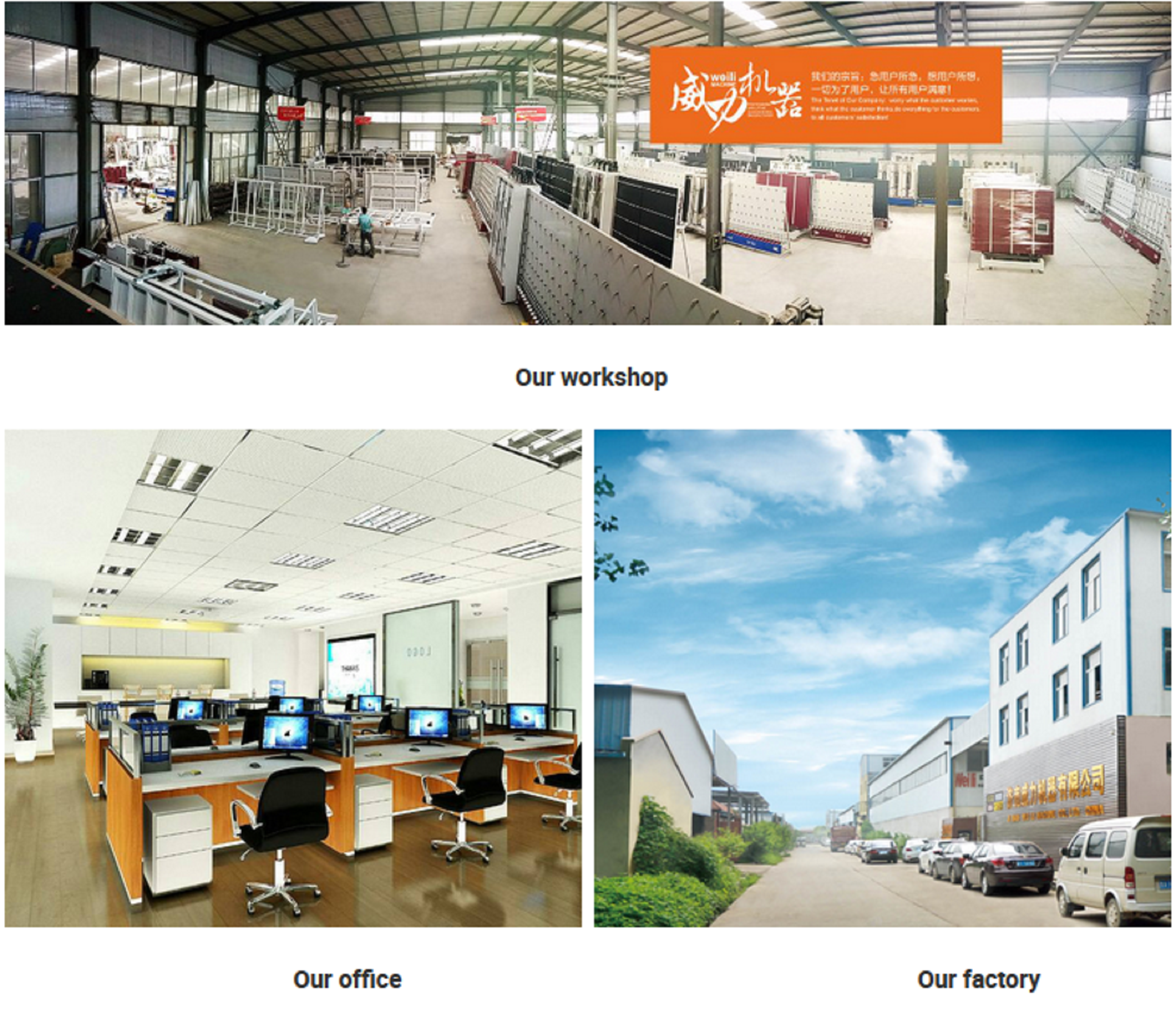

Please check our factory:

Semi Auto Double Glazing Glass Production Equipment Aluminum Spacer Bar Bending
