Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot

Name: Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot
Brand: WGM & WEILi
Price: 40000 USD

China Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot wholesale

Brand Name : WGM & WEILi

Model Number : WL2500-32

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1set

Price : USD 40000-80000/SET

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with standard plywood pallet or according to customers` requirements 2.In wooden case and plastic film 3.In container

Name : Insulating glass automatic sealing line

Control : YASKAWA servo control system

Color : Blue or customize

Power supply : 13kw

Type : Vertical

Dimension(LxWxH) : 9500mmx3200mmx3400mm

Warranty : 1 year

After service : Field installation commissioning and training

maxium glass size : 300*300mm

usage : triple glazing,shape glazing

Contact Now

2500MM shape glazing automatic silicone sealing robot

Features:

1 this sealing line is divided into 3 parts
2 can keep insulating glass automatic continuously sealing, sealing with high efficiency
3 single sealant supply system(can seal silicone and polysulfide sealant), which can be changed easily into double sealant supply system(can seal both silicone and polysulfide sealant) through the touch screen
4 adopted world-renowned brand of servo control system, motion controller and controller card, performance is stable, besides we adopt 6 axis servo motor and make our glue with high precise.
5sucker can suck the middle of the glass make the glass transmission more stable
6ecise adjustment for the mixing ratio of the sealant.
7 can measure the depth of extruding sealant

Technique parameter:

Product model		WL2500-32
Min.glass size		300*450mm
Max.glass size		2500*3500mm
Glass thickness		3-12mm
Sealant-mixing system		Double Sealant-mixing system
Insulating glass thickness		12-56mm
Sealing speed		5-30m/min
Sealing width		6-24mm
Sealing depth		2-15mm
Conveyor speed		0-48m/min
Power supply		13KW
Air supply		0.5-0.8Mpa
Working height		520-580mm
Dimension	875030003400mm

Main Electric components:

No.

Name.

Brand

Country

Servo motor

YASKAWA

Japan

Motion controller

YASKAWA MP2200

Japan

Transducer

Schneider

France

Photoelectric

Omron

Japan

Approach switch

AUTONICS

Korea

Low-voltage electrical

Schneider

France

10.3 inch Touch screen

Schneider

France

Pilot-operated type proportional flood valve

HNC

Taiwan

Precise adjust pressure valve(5pieces)

SMC

Japan

Air treatment

Airtac

Taiwan

solenoid valve

Airtac

Taiwan

Air cylinder

Airtac

Taiwan

One-way valve

KOMPASS

TAIWAN

Details:

glue depth scanner

Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot

Sealant mix system

Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot

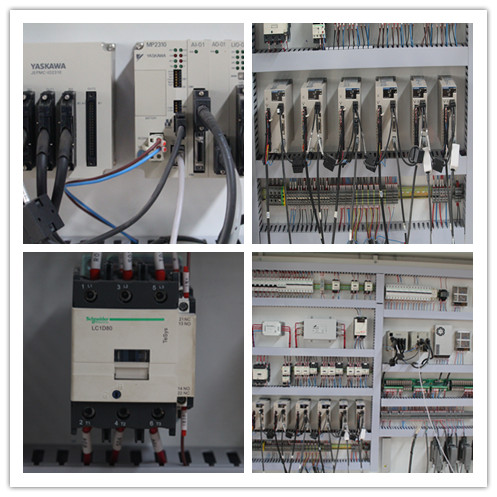

ELECTRIC component photos

Packing & Delivery

1.Machine packing with plywood pallet or according to customers` requirements
2.In plywood pallet and plastic film
3.In container

Automatic Shape Double Glazing Glass Machine With Two Type Different Sealant Sealing Robot

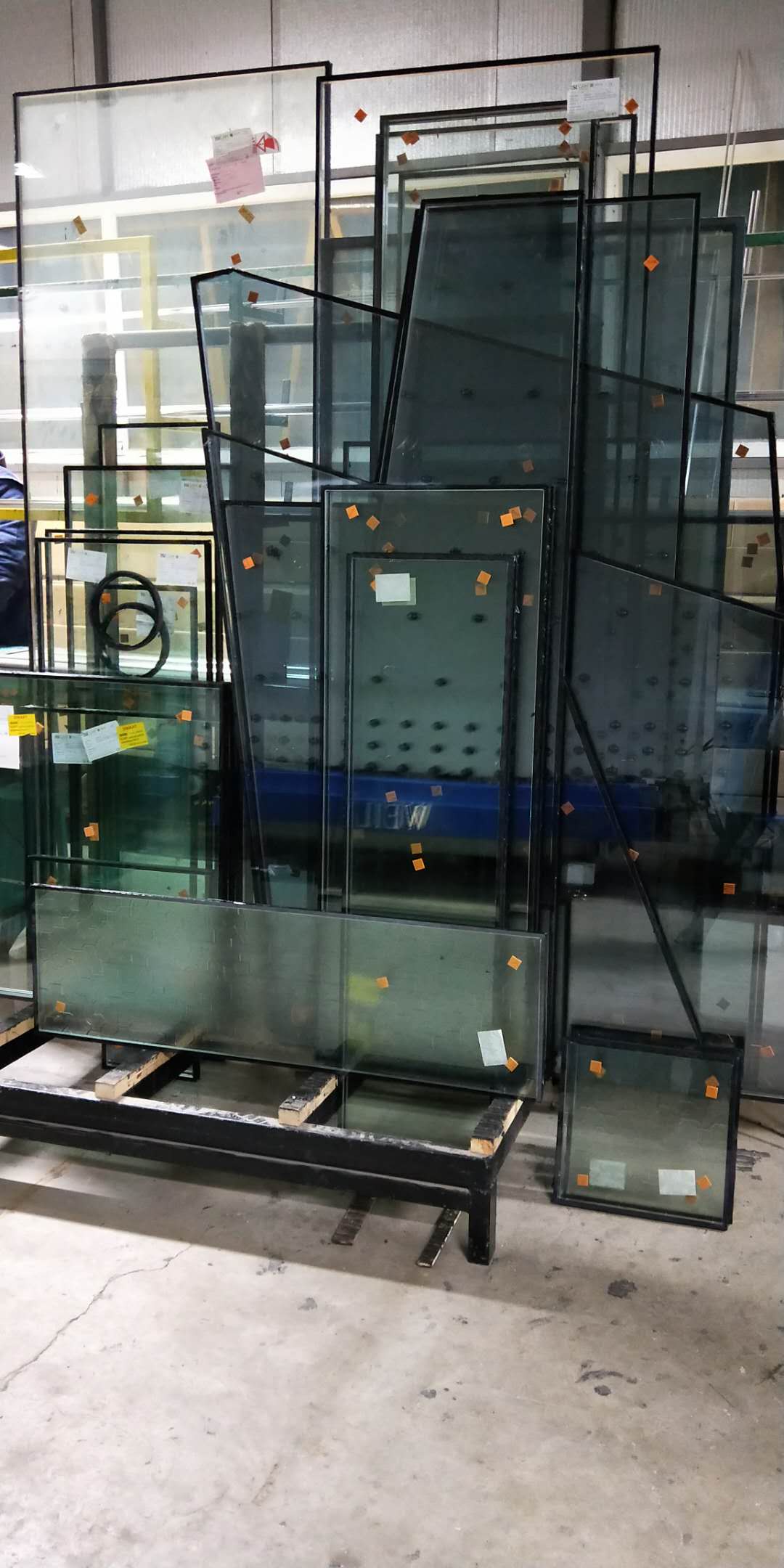

finished double glazing and shpaed glazing
