Schneider PLC Insulating Glass Machine CE Certificate And Blue Colour

Brand Name : WGM

Model Number : LBW2000PB

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Price : usd 30000-70000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200sets/year

Delivery Time : 45working days

Packaging Details : plywood pallet and plastic film

min glass size : 300x400mm

max glass size : 2000x2500mm

colour : black &blue

washing glass thickness : 3-15mm

washing glass speed : 0-10m/min

insulating glass thickness : 48mm

Contact Now

Main feature

1.adopts the PLC to control the working condition, touch screen and man-machine interface;

2.low-e glass automatic diagnosis system.

3.cleans coating glass and low-e glass;

4.adopts no oil water-proof bearing in the washing section;

5.conserves energy interrupted type automatic operation system.

6.produce double glazing, triple glazing and step glazing;

7.synchronous belt and ball screw to drive press section able yo open the 450mm for maintenance.

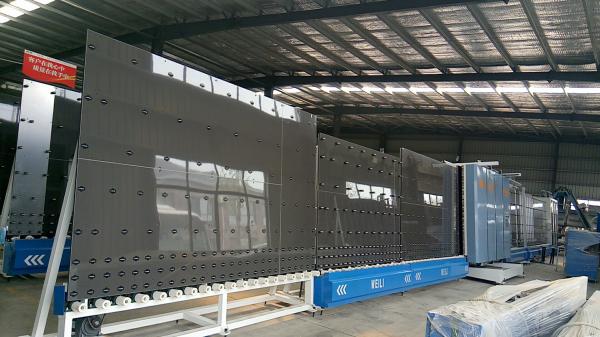

Schneider PLC Insulating Glass Machine CE Certificate And Blue Colour

washing and drying part

Schneider transducer and low-voltage eletric components (France brand)

main technical parameter

Min glass size: 300x400mm;

washing glass thickness: 3-15mm

washing glass speed:0-10m/min

power supply:380V/50HZ 34KW

insualting glass thickness 48mm

transmission glass speed 45m/min

compressed air 800L/min

flow volume 0.8m³/min

air pressure: 1Mpa

Main electric component and pneumatic components


PLC	Schneider	France
Touch screen	Schneider	France
photoeletricity	Autonics	Korea
low voltage electric components	Schneider	France
pneumatic components	airtac	Taiwan
brush can wash low E glass
304 stainless steel for washing and drying part
