Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses

Jinan Weili Machine Co., Ltd.
Contact Now

Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses

  • 1
  • 2

Brand Name : WGM

Model Number : WL2500-32

Certification : ISO CE BV

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per year

Delivery Time : 10 to 30 days

Packaging Details : Plywood Pallet

Motion controller : YASKAWA

Sealing speed : 5-30m/min

Dimension : 82900(L)x3000(W)x2950(H)mm

Max glass size : 2500x3500mm

Contact Now

13 Pieces YASKAWA Servo Motor Control

automatic silicone sealing line for double glazing glasses

Feature:

1) Automatically adjust nozzle extending width according to the glass width

2) Pressure regulation set via human-machine interface, working smoothly and operated conveniently

3) Intelligent dispensing system is able to calculate the amount of sealant needed.

4) Automatic sealant compensation at the corners, sealing supplementary time adjustable

5) Sealing head floating pressure intelligent control.

6) Can be either used standalone, or integrated into existing I.G production line.

7) Sealant extruded by hydraulic cylinder, performance is smooth and uniform

9) Circa 13 servo motors control system, can work with triple,shpe and step insulating glass

8) Input and outcome transmission flat V-belt automatically open and close

according to the thickness of the glass

Technical Parameter:

Max glass size
2500x3500mm
Min glass size
300x300mm
Glass thickness
3-12mm
Insulating glass thickness
12-56mm
Sealing width
6-24mm
Sealing speed
5-30m/min
Sealing depth
2-15mm
Conveyor speed
0-48m/min
Power supply
13kw
Air supply
0.5-0.8Mpa
Working height
520-580mm
Dimension
82900(L)x3000(W)x2950(H)mm

Main components:

Motion controller(MP2200)
YASKAWA
JAPAN
Servomotor(7series)
YASKAWA
JAPAN
Control module(IRO2310)
YASKAWA
JAPAN
Transducer
SCHNEIDER
FRANCE
Photoelectric switch
AUTONICS
KOREA
Approach switch
AUTONICS
KOREA
Low-voltage component
SCHNEIDER
FRANCE
Touch screen
SCHNEIDER
FRANCE
Pilot-operated type proportional flood valve
JILI
TAIWAN
Precise adjust pressure valve(five series)
SMC
JAPAN
Single -way valve
KOMPASS
TAIWAN
Air treatment
ATRTAC
TAIWAN
Air solenoid valve
AIRTAC
TAIWAN
Air cylinder
AIRTAC
TAIWAN
Liner guide rail
HIWIN
TAIWAN

Service:

Pre- sale service After - sale service

* Inquiry and consulting support.

* Professional customize

* Provide factory layout according to your factory size in advance

* Visiting our factory.

* Provide English Version of

Installation/Operation/Service/Maintenance Manual.

* Engineers available to service machinery overseas.

* Online support

* Video technical support

* Field maintenance and repair service

* Field installation commissioning and training

Real photos:

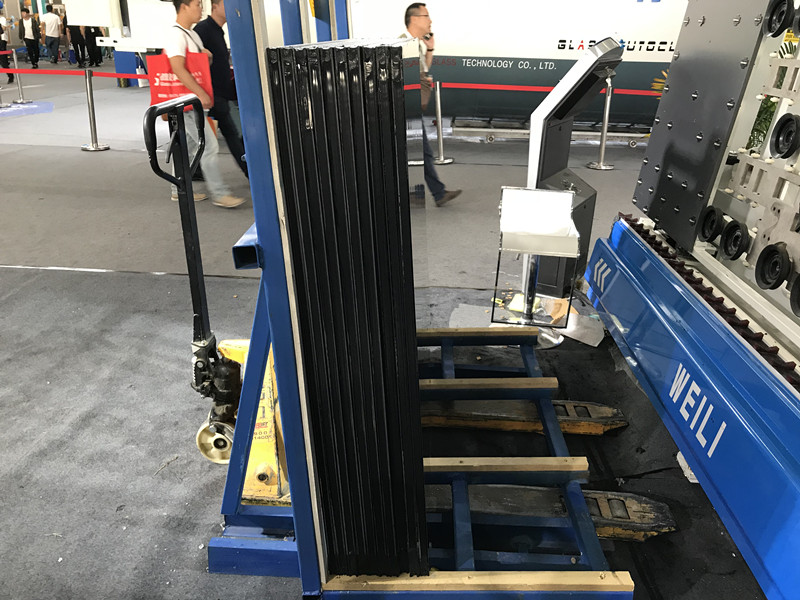

Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses

►The sealing of all edges and corners enriches no air bubbles,

fully coating, without manual trimming.

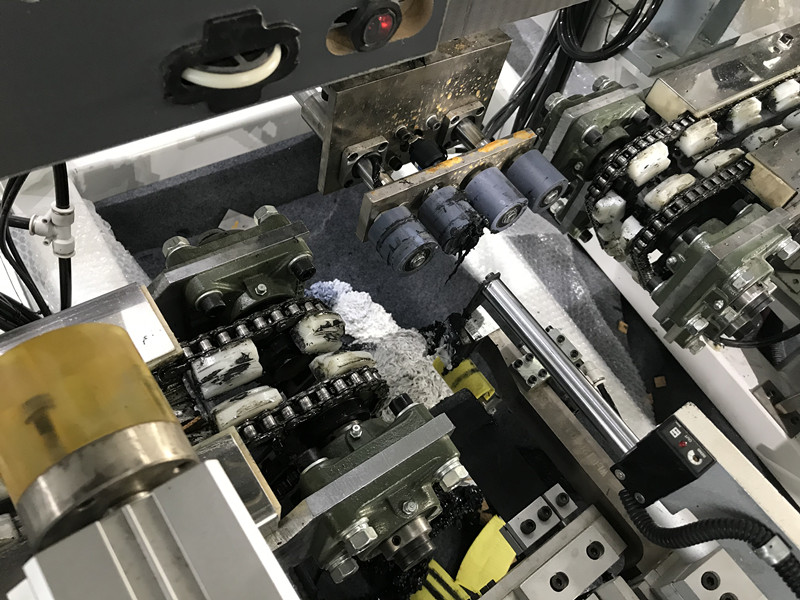

Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses


Automatic cleaning function:When it is used for a long time or not used,

the worker must clean the rubber tube (blunt glue) to avoid solidifying the rubber tube.

When the worker adopts the cleaning function, the glue in the rubber tube will be discharged to avoid solidifying and protect rubber tube.

Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses

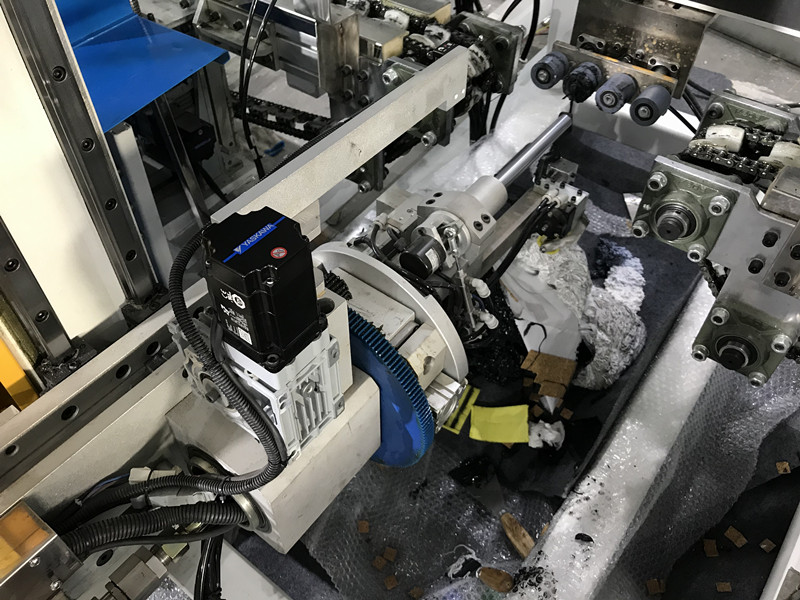

Japan Yaskawa servo motor control

Silicone Sealing Line Insulating Glass Production Line For Double Glazing Glasses

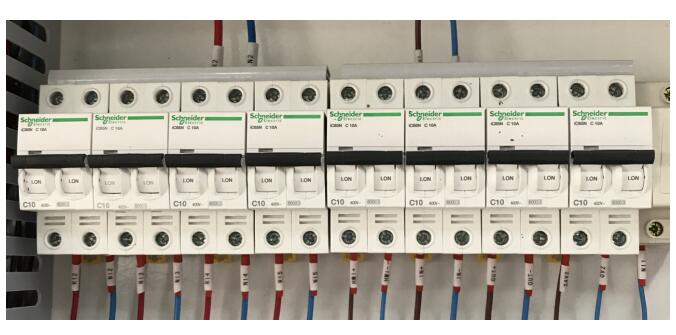

►France imported Schneider low-voltage components

Package:

1.In container.
2. Plywood pallet with Plastic film.
3.As customers requirement.
Shipping Methods:

1. Sea shipping for large amount cargos (GW>500kgs)
2. Air shipping normally used for GW between 100kgs to 500kgs
3. By express, such as DHL, Fedex, TNT, UPS. This method is used for small amount cargos
