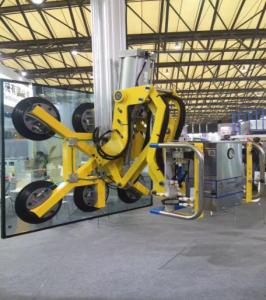

90°C Rotation Double Glazing Machinery Yellow Colour Glass Vacuum Lifter

Brand Name : WGM

Model Number : WL 500 Glass Lifter (6 suckers)

Certification : CE

Place of Origin : SHANDONG JINAN CHINA

MOQ : 1SET

Price : USD2500-10000/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 266SETS/YEAR

Delivery Time : 15DAYS

Packaging Details : PLYWOOD PALLET AND PLASTIC FILM

ORIGIN OF PRODUCT : CHINA

MAX LIFTER WEIGHT : 500KGS

SUCKER NUMBER : 6PCS

COLOUR CHOICE : BLUE OR YELLOW

Contact Now

WL500 Glass Lifter (6 suckers) WITH ROTATION FUNCTION

FEATURE

The machine is used in the factory, wharf, and warehouse to move goods in short distance.The arm installing the air cylinder is to lift the heavy goods;horizontal rotation is manual way;the max.rotation angle is 270°C.

In structure, the machine adopts bolts as the connection parts.The worker fixes the connection support into the concrete wall or steel pillar. It doesn’t occupy the factory space, and the structure is simple, convenient to operate, and the working space is large.

90°C Rotation Double Glazing Machinery Yellow Colour Glass Vacuum Lifter

TECHNOLOGY

Maximum weight of glass unit	500 kg (WL 500)
Crane: height	4.8 m
Crane: length of horizontal arm	5.0 m
Crane: horizontal movement along the arm	1.0 - 4.7 m (manually)
Crane: horizontal rotational angle of arm	270° (around vertical axis)
Cylinder: lifting length	1200 mm (WL 500)
Suckers	6 (WL 500)

90°C Rotation Double Glazing Machinery Yellow Colour Glass Vacuum Lifter
