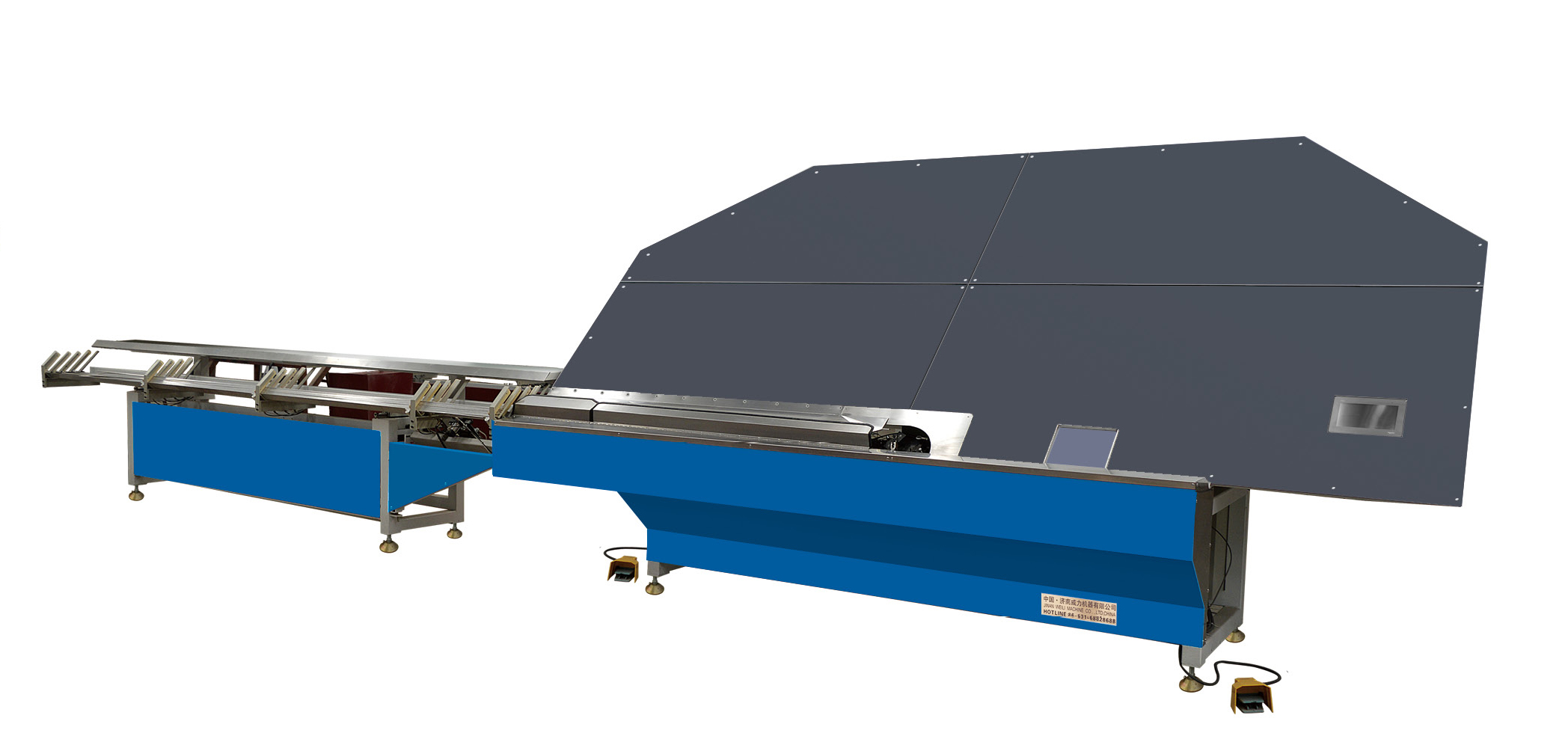

Fully Automatic Bar Bending Machine Fast Bending Speed Quanity Production

Brand Name : WGM

Model Number : LWJ01

Certification : CE&SGS

Place of Origin : SHANDONG CHINA

MOQ : 1set

Price : USD5000-20000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 158sets/10months

Delivery Time : 15days

Packaging Details : plawood pallet and plastic film

aluminum bar size : 6-24mm

Semi-auto or Automatic : Automatic

colour choice : blue

production quantity : 600-700units/8hours

Contact Now

fast bending speed quanity production Automatic Bar Bending Machine

feature

1. The whole machine is controlled by SIEMENS PLC(Germany) . The Man-machine contact screen is WEINVIEW brand. The whole machine features easy and quick operation.

2. It adopts Taiwan Airtac pneumatic components. The movements of the machine are precise and reliable.

3. It adopts the SIMENS servo motor system to feed and bend the aluminum bar. The efficiency and bending precision are high.

4. The machine is equipped with four storage area and can store four different sizes of aluminum bar

5. The machine can connect, transmit, bend, and cut the aluminum bar automatically.

6. It can be operated manually so it is easy to debug and maintain the machine.

7. The machine can produce 32 different shapes of aluminum bar, including the triangular, rectangle, positive pentagon, round, semicircle and circle arc with a straight line.

8. Can process not only rectangle aluminum bar, but shaped aluminum spacer, like circle, semi-circle, and triangle, etc.

Fully Automatic Bar Bending Machine Fast Bending Speed Quanity Production

parameter

Power supply	3p;380V 50Hz
Total power	2.2KW
Min spacer frame size	250*250mm
Max spacer frame size	2400*2400mm
Overall dimension	10480mm2200mm2600mm

electric component

Fully Automatic Bar Bending Machine Fast Bending Speed Quanity Production
