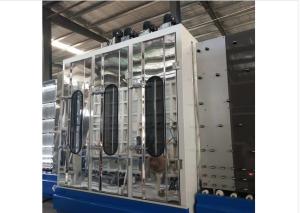

2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line

Jinan Weili Machine Co., Ltd.
Contact Now

2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line

Brand Name : WEILI

Model Number : LBW2500PB

Certification : CE,,SGS,ISO 9001,SGS&CE&BV

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 20sets/month

Delivery Time : 30 working days

Packaging Details : plastic plywood and wooden package

Min glass size : 300*450mm

Max glass size : 3~15mm

Voltage : customizable

Glass thickness : 3-80mm

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support,Field maintenance and repair service

Name : Factory direct sale 2500mm double glazing machine/Automatic flat press insulating glass produce line

Function : Factory direct sale 2500mm double glazing machine/Automatic flat press insulating glass produce line

Exhibition : American,turkey,India,Mexico in 2019

Customer : 60 countries which have our machine

Production time : one month

PLC brand : French Schneider

Servo motor brand : French Schneider

Low-e electrical components : French Schneider

Contact Now

2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line
SPECIFICATIONS
Power Supply
380V/50HZ 35Kw
Dimension(LxWxH)
18800x2600x3050mm
Production quantity
600-700IG units/8hs
Max Glass Size
2000x2580mm
Min Glass Size
300x400mm
Washing Glass Thickness
3-15mm
Washing Glass Speed
0-10m/min
Insulating Glass Thickness
≤48mm
Transmission Glass Speed
45m/min
Compressed Air:
0.8m³/min
Air Pressure:
1Mpa



Main Features

1. with the function of assembling outside and inside, processing unequal glass and
overlong glass
2. the entire machine adopts the PLC to control the working condition, touch screen and
man-machine interface.
3. low-e glass automatic diagnosis system
4. adopt SKF oil water-proof bearing in the washing section
5. produce double glazing and triple glazing and shaped insulating glass
6. brushes can wash coating glass, low- e glass, variable frequency drive.
7. Ball screw and Synchronous belt control to flat press section,
able to open 450mm for main tenance
8. Automatic energy-conservation discontinuity working system: the running section
operate in full speed and the other sections that are not in work will automatically change
into intelligent dormancy state. It saves the energy and decreases the power consumption.

9. the low-voltage apparatus adopted the international famous brand.
10. having two kinds of operation model: automatic operation and manual operation


2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line
Jinan Weili Machine Co., Ltd mainly specializes in producing insulated glass equipment and glass deep-processing equipment. We also provide PVC window machines and Aluminum window machines. We always supply our customers with high quality products, and our company has attained CE Certificate. Since our establishment, we have insisted on the concept of "innovation with technology, sincere service, being honest and reliable". We produce a large quantity of first-class insulated glass processing equipment. Our products sell well at home and abroad, and some are exported to Europe, America and Southeast Asia. Jinan Weili Machine Co., Ltd. is widely accepted by customers from home and abroad. Strong market competition consciousness makes us always being ahead in the industry. We hope to develop with you hand in hand for a brilliant future. We respect our customers, understand them and communicate with them smoothly. We will always provide you with amazing service and high-quality products. We are sincerely looking forward to your cooperation with us for mutual benefits!
2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line

2500mm Double Glazing Machinery Automatic Flat Press Insulating Glass Produce Line
(The pics we took in 2017 years,we use the red color for our machine.)
