Full automatic aluminum spacer bar bending machine for double glass
Technical Parameter:
Power supply
| 2P 220V/50HZ
|
Total power
|
2.5KW
|
Air pressure
|
0.5~0.8Mpa
|
Min spacer frame size
|
250*250mm
|
Max spacer frame size
|
2500*3000mm
|
Spacer width range
|
5.5mm~23.5mm
|
Overall dimension
|
10500*2100*2200mm
|
Production tolerances
|
+/- 0.5mm
|
Features and functions:
1) The whole machine is controlled by Siemens PLC. The Man-machine contact screen is Taiwan winview brand.
The whole machine features easy and quick operation.
2) It adopts the Japan FUJI servo motor system to feed and bend the aluminium bar. The efficiency and bending
precision are high.
3) It adopts Taiwan Airtac pneumatic components. The movements of the machine are precise and reliable.
4) The machine can produce 32 different shapes of aluminium bar, including the triangular, rectangle, positive
pentagon, circle arc with a straight line.
5) When bending and cutting, the machine will automatically avoid the connection parts of the
aluminium bar and the circle arc parts. After bending, the machine will cut the bar automatically.
6) It can be operated manully so it is easy to debug and maintain the machine.
7) The machine is eauipped with four storage area and can store four different size of aluminium bar.
Real photos:
PLC control system with touch screen interface, the parameter setting is fast and convenient
Servo motors control feeding and bending

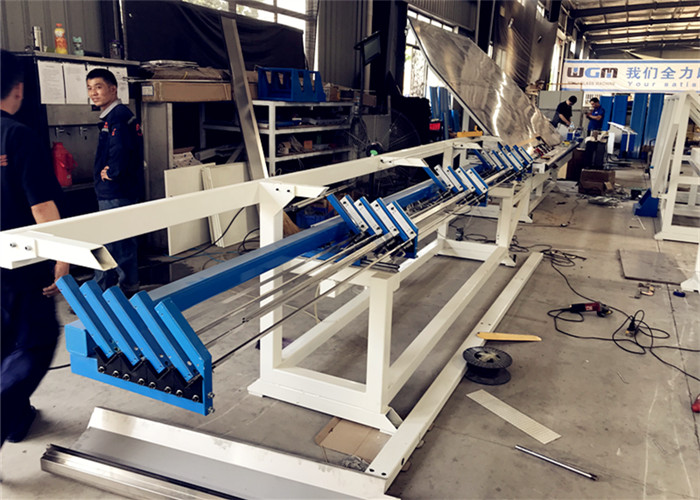

The 4 profile magazines for 4 different specifications of spacers
Automatically avoid connectors between spacers and circular when cutting and bending
32 shapes available
1.In container.
2. Plywood pallet with Plastic film.
3.As customers requirement.
