Insulating Glass Automatic Aluminum Bar Bender Double Glazing Glass Frame Spacer Bending Equipment

Name: Insulating Glass Automatic Aluminum Bar Bender Double Glazing Glass Frame Spacer Bending Equipment
Brand: WEILI & WGM
Price: 1 USD

China Insulating Glass Automatic Aluminum Bar Bender Double Glazing Glass Frame Spacer Bending Equipment wholesale

Brand Name : WEILI & WGM

Model Number : LWJ01

Certification : CE, SGS, ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets per year

Delivery Time : 10-15 work days

Packaging Details : plywood pallet and plastic film

Color : Blue or customize

Control system : PLC

Air pressure : Above 0.8Mpa

Dimension : 10500x2100x2200mm

Spacer width : 5.5-24mm

Min aluminum spacer size : 250mmx380mm

Max aluminum spacer size : 2500mm*2500mm

Contact Now

LWJ01 Automatic Spacer Bending Machine

Feature:

1) The tolerance between design and actual spacer length size is less than1.0mm

2) The butyl glass cement surface is smooth, with no bulge in the bending positions, and the tolerance between bending position’s and the aluminum bar’s width is less than 0.3mm

3) Processing speed test: circa ≤30 seconds/unit for 1000mm×1000mm 9A aluminum bar (automatic stocking and spacer auto connection time included)

4) Processing database: setting 4 type×9999 pic data

5) USB and PC efficient production data input function

6) High speed bending function, suitable high glass deep processing enterprises with high degree of mechanical automation.

7) Auto slots orientation function ,do not need to manual changing slot operation, aluminum shapes& circle.

Technical Parameter:

Power supply	3P 380V/1P+N 200V 50Hz 4KW
Total power	4KW
Air pressure	0.6Mpa
Min spacer frame size	250*250mm
Max spacer frame size	2400*2400mm
Spacer width range	5.5mm~23.5mm
Overall dimension	10480mm2200mm2600mm
Production tolerances	+/- 0.2mm
Weight	1800kg

Company Information:

Jinan Weili Machine Co., Ltd. is committed to the architectural glass and glass industry. It mainly produces curtain wall and glass deep processing equipment for curtain wall energy-saving insulating glass production line.

Constantly innovating, capturing high technology, improving the overall level of the industry, making China's mature high-tech insulating glass equipment go international and recognized by international users. This is the goal and responsibility of Weili people.

Our Service

Installation: According to buyer's demands, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to provide machine installation and workers training service.
Warranty time: One year is usually terms.

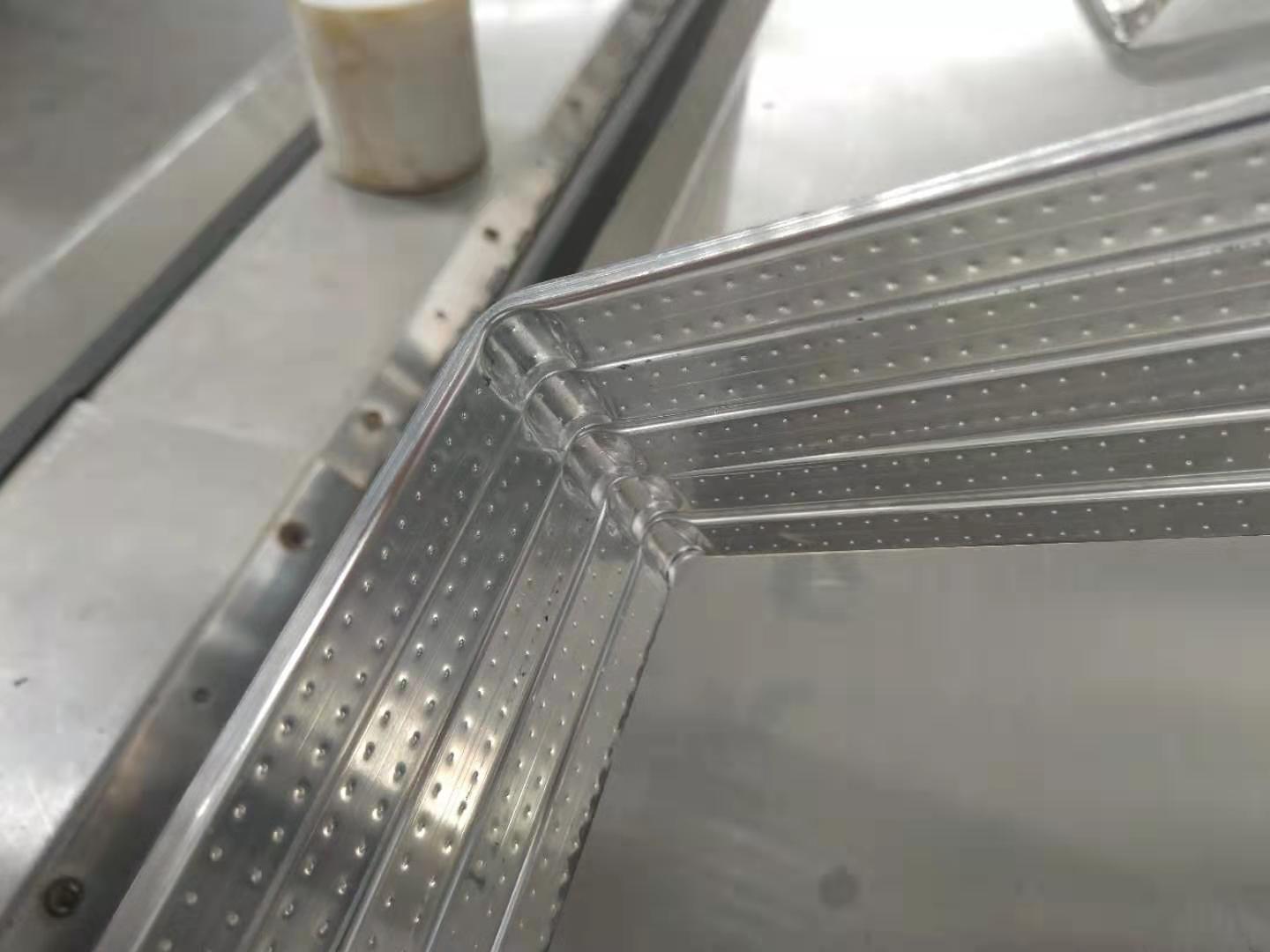

Photos:

Insulating Glass Automatic Aluminum Bar Bender Double Glazing Glass Frame Spacer Bending Equipment

Welcome to visit us in Jinan

Weili Glass Machine!
