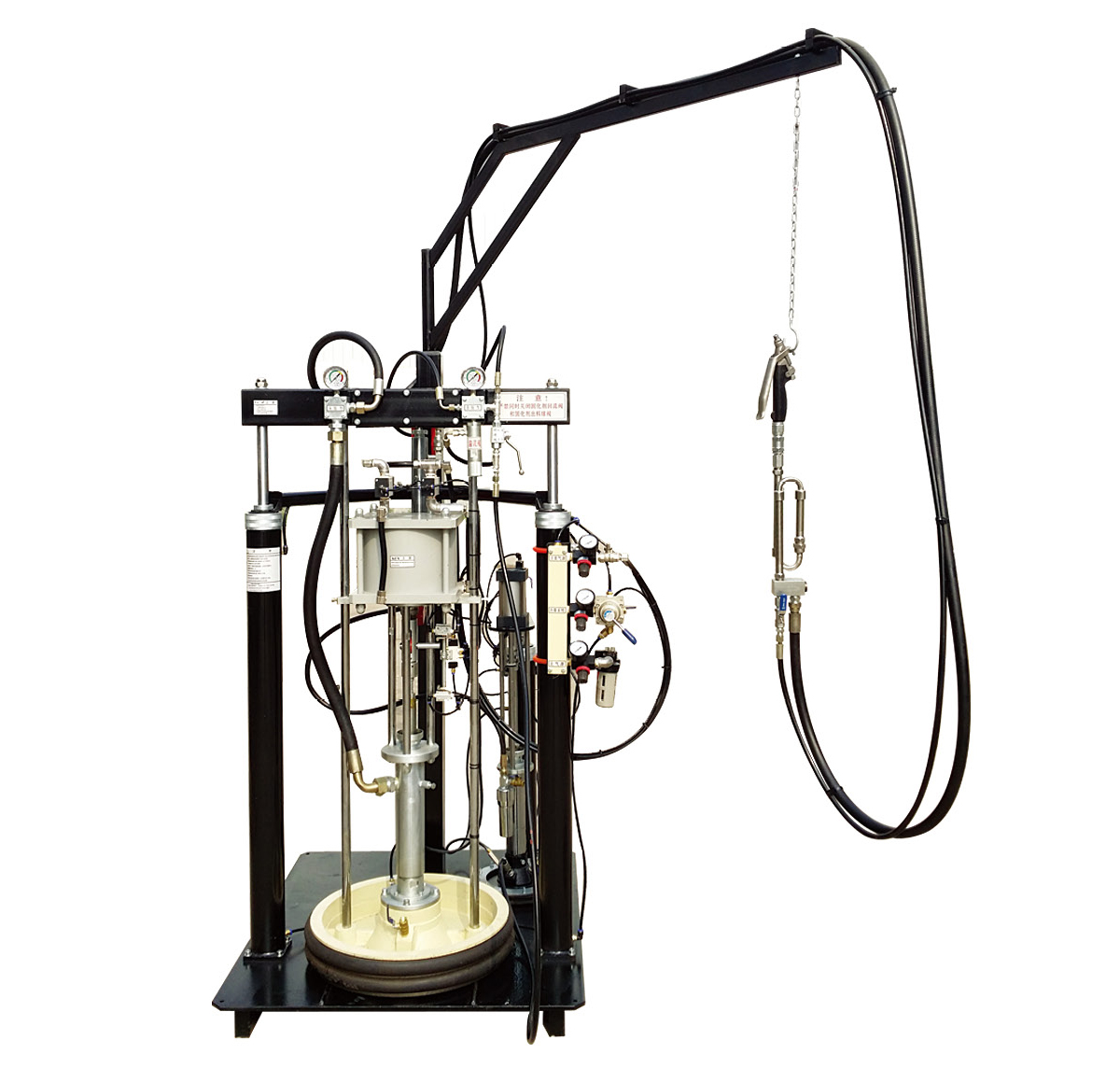

Sealant Extruder ST05 Manual Sealant Glue Spreading Machine Pneumatic Working System Insulating Glass Line
Main features
1. Pneumatic control two component sealant extruder , split type or unibody type structure ,easy to operate
2. Suitable for mass production of insulating glass and curtain walls
3. Main and auxiliary motor all adopt American advanced technology, stable power, large sealant output
4. Integrated structure of base material pump, curing agent pump and proportioning pump , avoid leaking sealant
5. Special device in base material pump and curing agent pump , avoid running idle
6. Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
7. Multichannel filtering device, eliminate the impurities into the pump body.
8. International popular type unique gun ,to make the mixing uniformity .Stainless steel mixing spindle ,precise and durable .
9. The check valve is made of high wear-resistant materials, directional stability, long service life .
10.Equipped with safety valve ,guarantee the operating safety .
11. The rotating arm is equipped with a universal device, flexible and portable .
Main technical parameter
| Mix rate | 6:1~14:1 changeable |
| Max. amount of extruded glue | 4L/min |
| Pump A platen diameter | 50 gallon(190L) |
| Pump B platen diameter | 5 gallon (20L) |
| Max. air consumption | 0.8 CBM/min |
| Max. extruding pressure | 19Mpa |
| Air pressure admission | 0.5~0.8Mpa |
| Overall dimensions | 1100 x 950 x 1630mm |

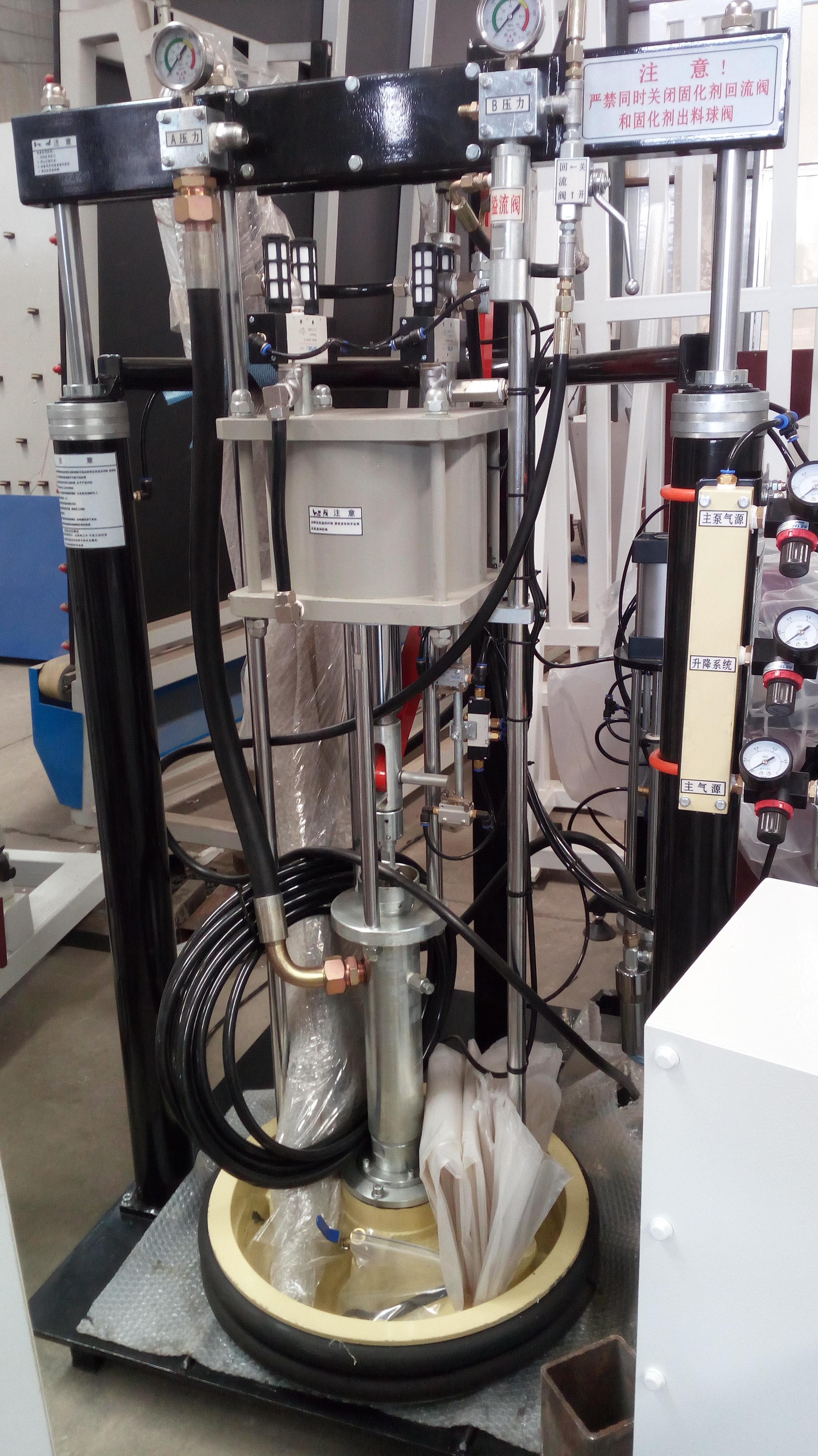

Detail Photos
Packaging & Shipping
Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.
Warranty time: Usually one year. It is negotiable.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What’s the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours’ technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
