Manual Silicone Sealant Extruder With Pipes Overload Protection Device

Name: Manual Silicone Sealant Extruder With Pipes Overload Protection Device
Brand: WGM&WEILI
Price: 6000 USD

Brand Name : WGM&WEILI

Model Number : ST06

Certification : CE&BV&SGS

Place of Origin : China

MOQ : 1 set

Price : USD 6000-12000/SET

Payment Terms : L/C, T/T

Supply Ability : 200 sets per year

Delivery Time : 35 work days

Packaging Details : 1.Machine packing with standard wooden case or according to customers` requirements 2.In wooden case and plastic film 3.In container

Name : Sealant-spreading machine

Usage : Making insulating glass

Color : Blue or customize

Warranty : 1 year

After service : Field installation commissioning and training

Total weight : 700kg

Dimension : 1100mmX950mmX1630mm

MIx rate : 6:1-14:1

Contact Now

Manual silicone sealant spreading equipment for insulating glass machine

Features:

1. The machine’s main parts (including A and B component glue pump, gelatinize gun and safety valve) are imported from Korea, or made of high-tension and high-quality stainless steel, the reliability and durability of the machine is greatly improved.
2. The machine’s curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.
3. The fluid flow rate stability is good. The system is also equipped with a pipes overload protection device, which makes it to be more safety for operation.
4. The A and B component glue pump and proportional pump’s high pressure valve are made of ground special leak-free alloy.
5. The special and convenient mix device can ensure the high mixture performance.
6. The internationally prevailing stationary reciprocating mixer is used in the machine, with the specially designed needle valve, the mixture result is excellent. Glue nozzle made of material with high elasticity make the production of insulating glass is more convenient, simple and elegant.
7. The machine can be used to spread polysulphide glue or silicone glue.

Technique parameter:

Mix ratio	6:1~14:1 changeable
Max. amount of extruded glue	4L/min
Pump A platen diameter	55 gallon(200L) φ565mm
Pump B platen diameter	5 gallon (20L) φ285mm
Max. air consumption	0.8 CBM/min
Max. extruding pressure	19Mpa
Air supply	0.5~0.8Mpa
Overall dimensions	1100 x 950 x 2500mm

Packing & Delivery:

1. Machine packing with plywood pallet or according to customers` requirements
2. In plywood pallet and plastic film
3. In container

Manual Silicone Sealant Extruder With Pipes Overload Protection Device

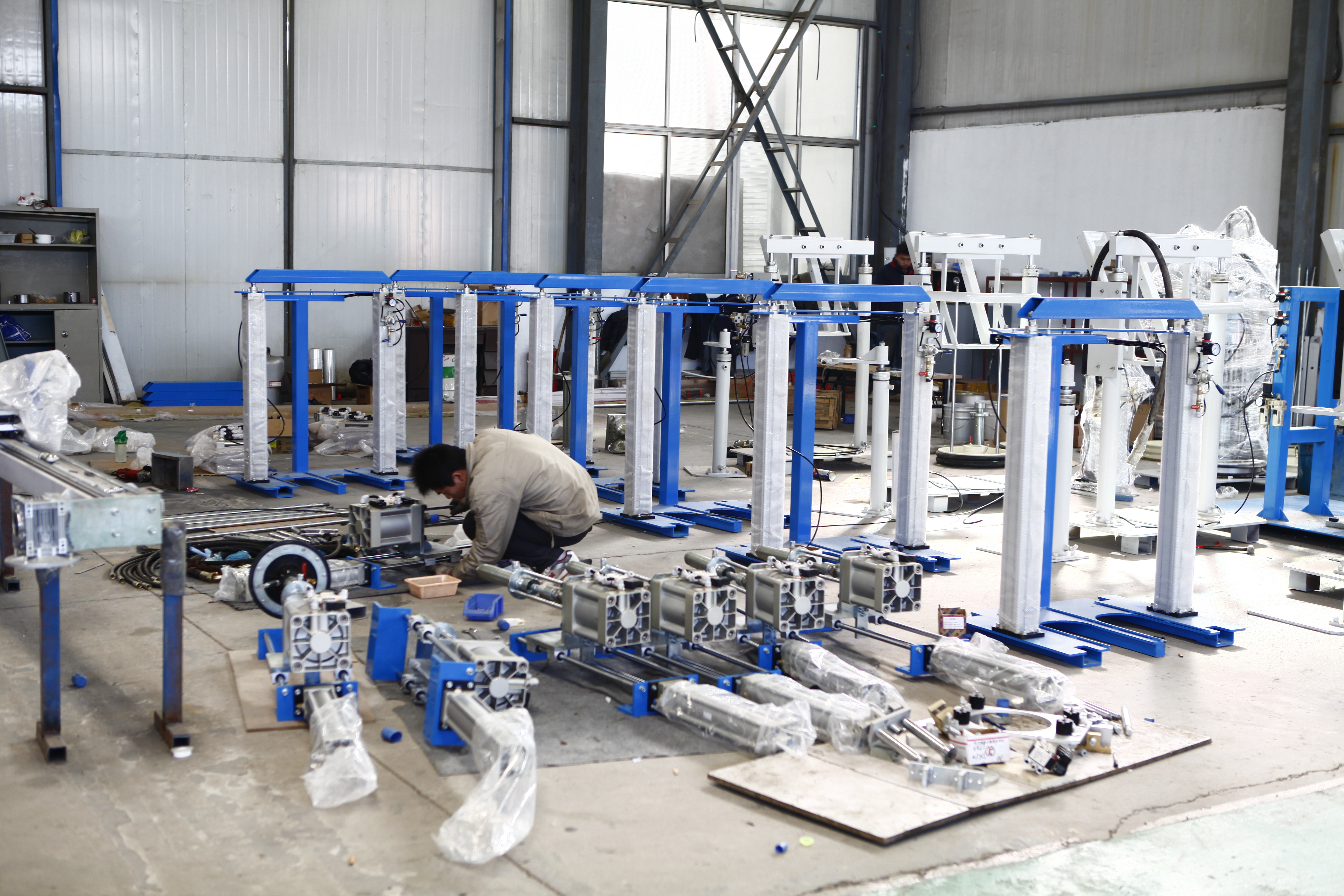

MACHINE FRAME ARE IN STOCK

Manual Silicone Sealant Extruder With Pipes Overload Protection Device
