Low E Double Glass Machine

Name: Low E Double Glass Machine
Brand: WEILI & WGM
Price: 1 USD

China Low E Double Glass Machine wholesale

Brand Name : WEILI & WGM

Model Number : LBW2500PC

Certification : CE, SGS, ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2 sets per month

Delivery Time : 30~35 working day

Packaging Details : Machine packing with plywood pallet and plastic film

Dimension(LxWxH) : 21000x2800x3450mm

Production quantity : 600-700IG units/8hs

Max Glass Size : 2500x3500mm

Min Glass Size : 400x400mm

Washing Glass Thickness : 3-15mm

LOGO Design : Optional

Compressed Air : 800L/min

Air Pressure : 1 Mpa

Contact Now

2500mm Height LowE Glass Processing Production Line CE Approval Automatic Insulating Glass Argon Gas Filling Machine

LBW2500PC Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Multifunction Production Line is a high-efficiency insulating glass processing equipment. This line can achieve the Europe gas filling standard and satisfy all aspects of customers’ demands with advanced technology, high production efficiency and complete functions. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.

Feature:
1) SIEMENS control system with touch screen interface
2) Assembly-in press
3) Automatic glass position system
4) 3 pairs brusher to make perfect washing performance of Low-E Glass and double air knife(oblique & vertical)
5) Automatic energy saving system
6) Auto twice pressing for large Jumbo size (nearly 5500mm length) of double insulating glass, beneath 3500mm length of glass (optional)
7) Automatic argon gas filling, gas concentration up to 90%
8) Automatic and accurate assembly system for Double &Triple (three-layers) insulating glass processing
9) Extra heating function system after washer to make sure the surface of glass dry enough
Note: RO water is necessary for the IG production quality

Technical parameter

Power Supply	380V/50HZ 35Kw
Dimension(LxWxH)	21000x2800x3450mm
Production quantity	600-700IG units/8hs
Max Glass Size	2500x3000mm
Min Glass Size	400x450mm
Washing Glass Thickness	3-15mm
Washing Glass Speed	0-10m/min
Insulating Glass Thickness	≤48mm
Transmission Glass Speed	0-45m/min
Compressed Air:	800L/min
Air Pressure:	1Mpa

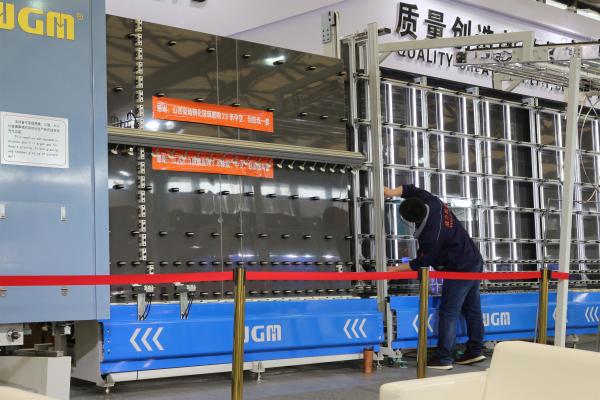

Detail Photos

Low E Double Glass Machine

Packaging & Shipping

Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.

Warranty time: Usually one year. It is negotiable.

FAQ

1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.

2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.

3.Question:What’s the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours’ technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
