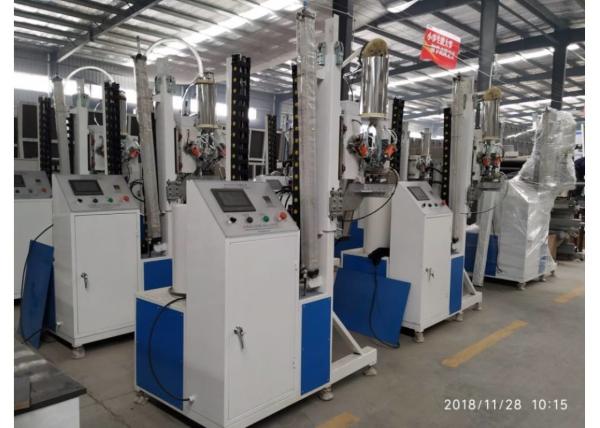

BFGJ01 Automatic Desiccant Filling Machine
Main Features
1. Controlled by Siemens PLC. The contact screen is Taiwan EASYVIEW brand. The operation interface is visual and succinct.
2. The pneumatic components adopt Taiwan AIRTAC brand.
3. Automatically drill the holes, fill the desiccant and seal the sealant.
4. It is available to fill the bent spacer bars and the ordinary corner connected ones.It owns the unique and advanced feeding device.
5. The filling height can be adjusted according to the size of the spacer bar.
6. Touch screen makes the operation more easily.
Main Technical Parameter
| Diameter of the desiccant | 0.5-0.8mm |
| Width of the spacer bar | 5.5-24mm |
| Max processable size | 2500*2500mm |
| Air Pressure | 0.6~0.8MPA |
| Power Supply | 220V 50HZ 1KW |
| Dimension | 1100*1080*3050mm |
Main Electrical Components
| No. | Product Name | Brand | Origin |
| 1 | PLC | OMRON | JAPAN |
| 2 | Approach switch | AUTONICS | KOREA |
| 3 | Magnetic switch | AIRTAC | TAIWAN |
| 4 | Foot switch | CNTD | CHINA |
| 5 | Temperature controller watch | OMRON | JAPAN |
| 6 | Touch screen | EIEW | CHINA |
| 7 | Low-voltage electric component, like relay, breaker | SCHNEIDER | FRANCE |
| 8 | Pneumatic components, like solenoid valve, air cylinder | AIRTAC | Taiwan |
Packaging & Shipping
Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.
Warranty time: Usually one year. It is negotiable.
Our Factory
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Based on the operating mode:”Professional, Meticulous, High, Top” ,our company has grown up to the leader of equipment line. It makes effort to create respected brand name by all glass industries.
Constantly making innovations, Capturing high technology, prompting the total level of industry, then to make Chinese mature and high technology insulating glass equipment for international, and accepted by international users. That is the Weili people working’s goal and responsibility.
