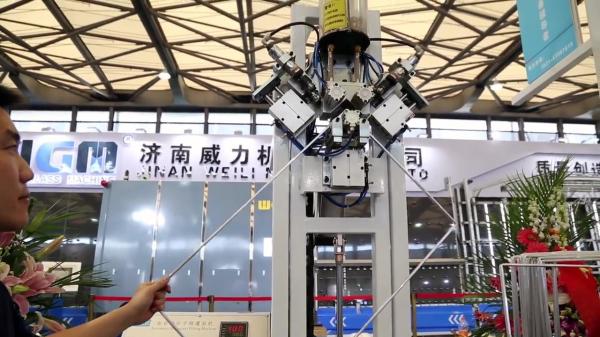

BFG03 Desiccant Filling Machine Automatic Insulating Glass Molecular Sieve
Main Feature:
1. Automatic desiccant filling machine is the special equipment for filling desiccant in the aluminum spacer of the insulating glass machine.
2. PLC control system with high stability
3. Adjustable filling height according to the aluminum spacer size
4. Equipment with automatically desiccant feeding system
5 Adopt Omron PLC system and easy operate touch screen, the operation interface is concise.
6. Can fill bending aluminum frame and ordinary corner connected ones
7. Controlled by Siemens PLC. The contact screen is Germany Siemens brand. The operation interface is visual and succinct.
8. The pneumatic components adopt Taiwan AirTAC brand.
9. Automatically drill the holes, fill the desiccant and seal the sealant.
10. It is available to fill the bent spacer bars and the ordinary corner connected ones.
Technical Data
Desiccant diameter: 0.5-0.8mm
Filling speed: 5sec/1000×1000×9mm(double sides)
Spacer width: 6-24mm
Max filling frame size: 2000×2000mm
Min filling frame size: 250×250mm
Air pressure: 0.7Mpa

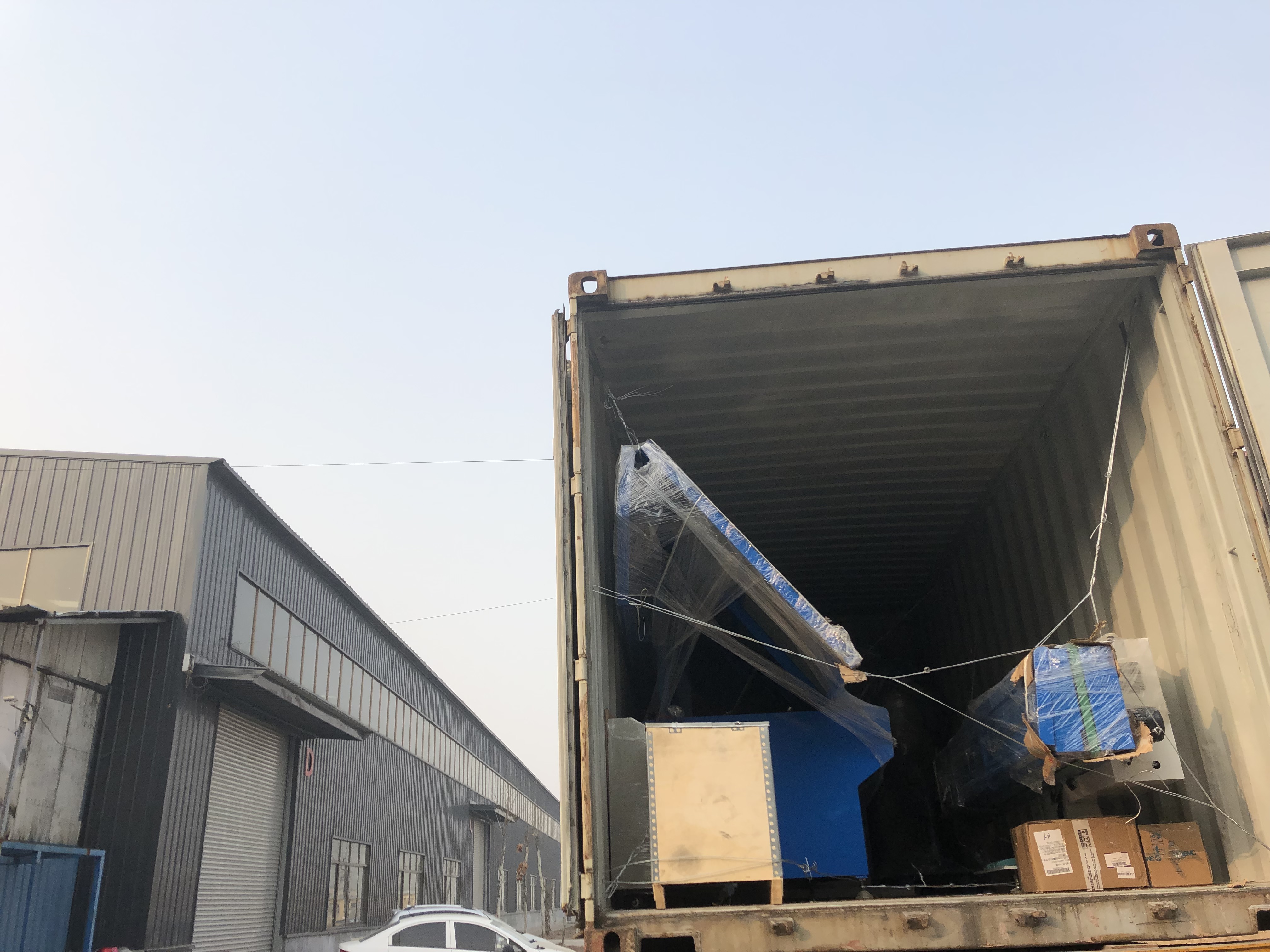

We are shipping the Machine
Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant
Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the insulating glass and double ,triple glass Full Automatic Desiccant Filling Machine for making the
